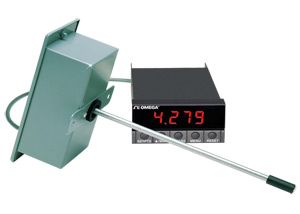

The PX276 is a rugged duct pressure transmitter that offers up to 3 field-selectable ranges in one unit. The PX276 incorporates a NEMA 4 (IP65) enclosure and a static pressure probe in one unit for ease of installation and accurate static duct pressure readings.
SPECIFICATIONS Excitation: 12 to 40 Vdc Output: 4 to 20 mA (2 wire) Accuracy: ±1.0% FS Operating Temperature: -18 to 80°C (0 to 175°F) Compensated Temperature: -4 to 65°C (25 to 150°F) Thermal Effects: 0.02%URL/°C (±0.0125% URL/°F) Proof Pressure: 10 psi Media Compatibility: Clean, dry air or inert gas Termination: Screw terminal block Enclosure: Enamel-coated, 18 GA steel enclosure with 6061T aluminum probe; NEMA 4 (IP65) rating Weight: 454 g (1.0 lb)
