Economical Pressure Transmitter with 4-20mA Output
PX182B Series

Economical Pressure Transmitter with 4-20mA Output

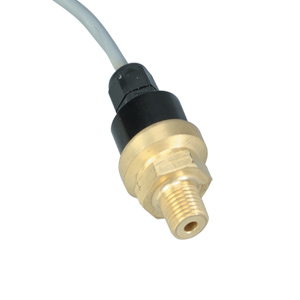

PX182B Series:Economical Pressure Transmitter with 4-20mA Output
Click for larger image.

• Digitally Compensated for Low Total Accuracy and Interchangeability
• Gage Pressure, Vacuum, and Compound Ranges Available
• Rugged Compact Design
• Two Wire 4 to 20 mA Current Loop Output
• RFI/EMI Protection
• Reverse Polarity Protection

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

OMEGA’s PX182B Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost.

The PX182B is fully digitally compensated for the effects of pressure and temperature change. It is extremely accurate, less than 0.3% FS reference accuracy, and less than 1% FS over its compensated temperature range.

SPECIFICATIONS
Excitation: 11 to 30 Vdc
Output: 4 to 20 mA (2 wire)
Accuracy: 0.3% BFSL maximum
(includes linearity, hysteresis, and repeatability)
Total Error Band: 1% FS
(includes temperature effects within compensated temperature range)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Compensated Temperature: -25 to 75°C (-13 to 167°F)
Process Temperature: -40 to 100°C (-40 to 212°F)
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS (750 psig for 500 psig range)
Burst Pressure: 3x FS or 750 psig, whichever is less
Wetted Parts: brass, borosilcate, silicon, RTV, and epoxy
Vibration: 10 g, 55 to 2000 Hz
Shock: 30 g
Process Connection: 1/8 NPT male
Electrical Connection: 0.4 m (18") 24 AWG cable
Weight: 142 g (5 oz.)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX182B-001GI    Consult sales   0 to 1 psi pressure transducer with 4 to 20 milliamp output
 PX182B-006GI 2 Weeks   ¥2,600.00    0 to 6 psi pressure transducer with 4 to 20 milliamp output
 PX182B-015GI 2 Weeks   ¥2,600.00    0 to 15 psi pressure transducer with 4 to 20 milliamp output
 PX182B-030GI    Consult sales   0 to 30 psi pressure transducer with 4 to 20 milliamp output
 PX182B-060GI 2 Weeks   ¥2,600.00    0 to 60 psi pressure transducer with 4 to 20 milliamp output
 PX182B-100GI    Consult sales   0 to 100 psi pressure transducer with 4 to 20 milliamp output
 PX182B-150GI    Consult sales   0 to 150 psi pressure transducer with 4 to 20 milliamp output
 PX182B-200GI    Consult sales   0 to 200 psi pressure transducer with 4 to 20 milliamp output
 PX182B-300GI    Consult sales   0 to 300 psi pressure transducer with 4 to 20 milliamp output
 PX182B-500GI    Consult sales   0 to 500 psi pressure transducer with 4 to 20 milliamp output
 PX182B-015VACI    Consult sales   0 to -14.7 psi vacuum transducer with 4 to 20 milliamp output
 PX182B-015CI    Consult sales   -14.7 to 15 psi compound vacuum/pressure transducer with 4 to 20 milliamp output
 PX182B-030CI    Consult sales   -14.7 to 30 psi compound vacuum/pressure transducer with 4 to 20 milliamp output
 PX182B-060CI    Consult sales   -14.7 to 60 psi compound vacuum/pressure transducer with 4 to 20 milliamp output
 PS-8G 8 Weeks   ¥133.00    Pressure snubber for steam and gases
 PS-8E 8 Weeks   ¥146.00    Pressure snubber for water and light oils
 PS-8D 5 Weeks   ¥146.00    Pressure snubber for oil
† Price are shown in RMB.
