Pressure Transmitter, Very High Accuracy, Current Output

PX01-I

Very High Accuracy Current Output Transducer

PX01-I:Pressure Transmitter, Very High Accuracy, Current Output

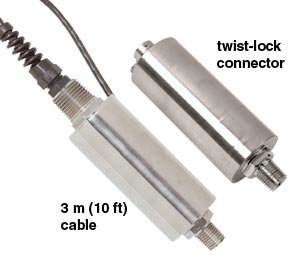

Click for larger image.

^¥ 11,705.00 PX01K1-100GI

•	0.05% Linearity
•	5-Point NIST Traceable Calibration Provided
•	All Stainless Steel Construction
•	Hermetically Sealed Design for Harsh Environments
•	Available in Gage, Absolute, Sealed Gage Models
•	Cable or Connector Models
•	Optional Pressure Ports to Fit Most Industrial Applications
•	See Related Links Below for Cables and Accessories
View related products - Pressure Transducers

OMEGA's PX01 is a very high accuracy, low-noise, 4 to 20 mA output industrial pressure transmitter. Its all stainless steel construction and hermetically sealed case make it suitable for harsh environments. A broad temperature-compensated range of 15 to 71°C (60 to 160°F) makes this transmitter very stable with fluctuating temperatures. The PX01 is available in gage, absolute, or sealed models, as well as in psi or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and Hydraulic applications.

The PX01 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-160 mbar to 0-400 bar pressure ranges. Please see the PXM01 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
4 to 20 mA Output
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±0.06 mA
Zero Balance: +4 mA ±0.02 mA
Linearity: ±0.05% FSO
Hysteresis: ±0.05% FSO
Repeatability: ±0.05% FSO
Sensing Element: 4-active-arm bridge, using thick-film strain gages in a hermetically sealed chamber (except gage units)
Operating Temp Range: -46 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% FSO/°F
Zero: 0.003% FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
Ranges <10000 psi: 7.16-20 UNF female;
also available: 1.4-18 NPT M/F; ranges 10,000 to 30,000 psi = 9/16-18, 1.4" HP tube
Electrical Connection: PTIH-10-6P or equal. Also available: 3 m (10') 2-conductor cable; explosionproof amplifier housing.
Mating Connector: PT06F10-6S (not included), metric ranges available
Weight: 388 g (13.7 oz)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

ABSOLUTE PRESSURE MODELS


7-16-20 UNF Fitting

PX01K1-010AI		Consult sales	0-10 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-015AI	42 Weeks	¥13,330.00	0-15 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-020AI		Consult sales	0-20 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-025AI	42 Weeks	¥13,330.00	0-25 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-050AI		Consult sales	0-50 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.


1/4 NPT Models

PX01C1-010AI	42 Weeks	¥13,550.00	0-10 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 NPT male fitting	qty.

PX01C1-015AI	42 Weeks	¥13,550.00	0-15 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 NPT male fitting	qty.

PX01C1-020AI	42 Weeks	¥13,625.00	0-20 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 NPT male fitting	qty.

PX01C1-025AI	42 Weeks	¥13,550.00	0-25 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 NPT male fitting	qty.

PX01C1-050AI	42 Weeks	¥12,735.00	0-50 psi Absolute Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 NPT male fitting	qty.


GAGE PRESSURE MODELS


7-16-20 UNF Fitting

PX01K1-002GI		Consult sales	0-2 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-005GI		Consult sales	0-5 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-010GI		Consult sales	0-10 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-015GI		Consult sales	0-15 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-050GI		Consult sales	0-50 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-075GI		Consult sales	0-75 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-100GI	42 Weeks	¥11,705.00	0-100 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-200GI		Consult sales	0-200 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-300GI		Consult sales	0-300 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-500GI	42 Weeks	¥11,705.00	0-500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-1KGI	42 Weeks	¥11,705.00	0-1,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-1.5KGI		Consult sales	0-1,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-2KGI		Consult sales	0-2,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-3.5KGI	42 Weeks	¥11,705.00	0-3,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-5KGI	42 Weeks	¥11,705.00	0-5,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.

PX01K1-7.5KGI	42 Weeks	¥11,705.00	0-7,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 7/16 -20 UNF-F fitting	qty.


High Pressure Fitting

PX01S1-10KGI	11 Weeks	¥12,665.00	0-10,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 HP Tube Fitting	qty.

PX01S1-20KGI	11 Weeks	¥12,735.00	0-20,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 HP Tube Fitting	qty.

PX01S1-30KGI	2 Weeks	¥12,735.00	0-30,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 HP Tube Fitting	qty.


1/4 NPT Fitting

PX01C1-002GI	100 Weeks	¥12,040.00	0-2 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-005GI		Consult sales	0-5 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-010GI	42 Weeks	¥12,970.00	0-10 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-015GI	42 Weeks	¥12,970.00	0-15 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-050GI	42 Weeks	¥11,955.00	0-50 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-075GI	2 Weeks	¥12,020.00	0-75 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-100GI	42 Weeks	¥11,955.00	0-100 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-200GI	42 Weeks	¥12,020.00	0-200 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-300GI	42 Weeks	¥11,955.00	0-300 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-500GI	2 Weeks	¥11,955.00	0-500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-1KGI	42 Weeks	¥11,955.00	0-1,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-1.5KGI	42 Weeks	¥11,955.00	0-1,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-2KGI	42 Weeks	¥11,955.00	0-2,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-3.5KGI	42 Weeks	¥11,955.00	0-3,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-5KGI	42 Weeks	¥11,955.00	0-5,000 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.

PX01C1-7.5KGI	42 Weeks	¥11,955.00	0-7,500 psi Gage Pressure transducer with a 4-20 mA output, twist lock connector and 1/4 -18 NPT-M fitting	qty.


ACCESSORIES

CA-2PC22-010		Consult sales	10 foot, 2 conductor cable assembly	qty.

CA-2PC22-025		Consult sales	25 foot, 2 conductor cable assembly	qty.

U24Y175		¥1,510.00	24 Vdc @ 175 ma Power supply, 120/240 Vdc	qty.

PT06F10-6S		¥326.00	MATING TWIST LOCK CONNECTOR	qty.

† Price are shown in RMB.

Note: (1) 2 and 5 psi Ranges available only on amplified output. (2) 1/4 HP Tube Fitting supplied for ranges 10,000 psi and above. (3)All Gage Pressure ranges are also available in Sealed Gage Pressure.
Ordering Example: (1) PT06F10-6S Mating connector (sold separately), ¥326.00, plus (1) PX01K1-1KGI 1,000 psi gage transducer with 4-20 mA output, twist lock connector and 7 / 16 -20 female pressure connection,, ¥11,705.00, ¥326.00 + 11,705.00 = $12,031.00

Part Number Builder

	(1)	(2)		(3)	(4)	(5)
P P X X 0 0 1 1			- -
Qty:

Option Descriptions

(1)

Pressure Fitting

Select
C for 1/4-18 NPT-M
D for 1/4-18 NPT-F
J for 7/16-20 UNF-M
K for 7/16-20 UNF-F
S for 1/4 HP Tube Fitting

(2)

Electrical Termination

Select
0 for 10 foot cable
1 for PT1H-10-6P connector (mating connector sold separately)
5 for Lightening protected amplifier box (4-20 ma only)

(3)

Pressure Range (PSI)

Select
002 for 0-2 psi
005 for 0-5 psi
010 for 0-10 psi
015 for 0-15 psi
020 for 0-20 psi
025 for 0-25 psi
050 for 0-50 psi
075 for 0-75 psi
100 for 0-100 psi
150 for 0-150 psi
200 for 0-200 psi
250 for 0-250 psi
300 for 0-300 psi
500 for 0-500 psi
750 for 0-750 psi
1K for 0-1000 psi
1.5K for 0-1500 psi
2K for 0-2000 psi
3K for 0-3000 psi
3.5K for 0-3500 psi
5K for 0-5000 psi
7.5K for 0-7500 psi
10K for 0-10000 psi
20K for 0-20000 psi
30K for 0-30000 psi

(4)

Units

Select
A for Absolute Pressure
G for Gage Pressure
S for Sealed Gage Pressure

(5)

Output

Select
V for mV/V Output
5T for 0-5 Volt Output
5Z for Isolated 0-5 Volt Output
10T for 0-10 Volt Output
I for 4-20 mA Output

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
