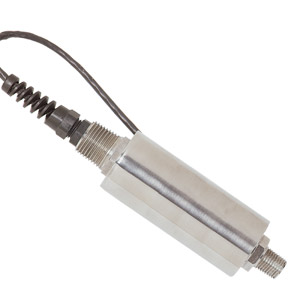

Very High Accuracy Pressure Transducer with 0 to 5 Vdc Output |
| PX01-5V |
|
 |
|
|
Pressure Transducer | High Accuracy & Voltage Output
 |
| Click for larger image. |
|
|
¥
11,705.00
PX01C1-100G5T
|
| • |
0.05% Linearity
|
| • |
Internal Shunt Resistor for Easy System Checks
|
| • |
5-Point NIST Traceable Calibration Provided
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed Design for Harsh Environments
|
| • |
Available in Gage, Absolute and Sealed Gage Ranges
|
| • |
Cable or Connector Models
|
| • |
Optional Pressure Ports to Fit Most Industrial Applications
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA's PX01 Series is a high accuracy, amplified voltage output, industrial pressure transducer. All stainless steel construction and a hermetically sealed case makes the PX01 suitable for harsh industrial environments. It is a true high accuracy industrial device. A broad temperature compensated range of 16 to 71°C (60-160°F) and excellent temperature compensation make this transducer very stable with fluctuating temperatures. The PX01 is available in gage, absolute or sealed models as well as PSI or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and Hydraulic applications.
The PX01 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-150 mbar to 0-400 bar pressure ranges.
Please see the PXM01 for complete details, or contact our Pressure department for more information.
Consult sales for units available with Inconel construction.
SPECIFICATIONS
Excitation:
0 to 5 Vdc Output: 24 to 32 Vdc
4 to 20 mA Output: 10 to 40 Vdc
4 to 20 mA (Lightning protection only):
12 to 40 Vdc
Linearity:
mV/V: 0.10% FSO <500 psi
0.05% FSO >=500 psi
All other models: 0.05% FSO
Hysteresis: 0.05% FSO
Repeatability: ±0.05% FSO
Shunt Calibration Value: Value
specified on calibration sheet
Sensing Element: 4-active-arm bridge, using thick-film strain gages in a hermetically sealed chamber (except gage units)
Operating Temp Range: -46 to 121°C (-50 to 250°F)
mV/V Output: -73 to 163°C (-100 to 325°
F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port: See custom
configurations
Electrical Connection:See custom
configurations
Mating Connector: PT06F10-6S (sold separately)
OUTPUT
0 to 5 Vdc Output: ±10% ADJ.
4 to 20 mA Output: 4 to 20 mA ±10%ADJ.
mV/V Output: 3 mV/V ±0.25% <500 psi
2.75 mV/V ±0.25% >=500 psi
Zero Balance:
0 to 5 Vdc Output: 0 V ±10% ADJ.
4 to 20 mA: +4 mA +10% -2% ADJ.
mV/V Output: 1.0% FS
Thermal Effects:
Span:
mA Output: ±0.003% FSO/°F
5V: ±0.002% FSO/°F
mV/V: ±0.0015% FSO/°F
Zero:
mA Output: ±0.003% FSO/°F
5V: ±0.001% FSO/°F
mV/V: ±0.0015% FSO/°F
Weight: 388 g (13.7 oz)
mV/VOutput: 255 g (9 oz)
Input Resistance
(mV/V Output): 350
±10 Ω
Output Resistance
(mV/V
Output): 350 ±10 Ω
Compatible meters: DP41-E*, DP25-E*, DP24-E*
(user-supplied power supply required)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: (1) 2 and 5 psi Ranges available only on amplified output. (2) 1/4 HP Tube Fitting supplied for ranges 10,000 psi and above.
Ordering Example: (1) PX01C1-1KG5T is a 1,000 psi gage transducer with 0-5 V output, twist lock connector and 1/4-18 NPT male pressure connection, ¥11,705.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Fitting
|
| |
Select
C for 1/4-18 NPT-M
D for 1/4-18 NPT-F
J for 7/16-20 UNF-M
K for 7/16-20 UNF-F
S for 1/4 HP Tube Fitting
|
(2)
|
Electrical Termination
|
| |
Select
0 for 10 foot cable
1 for PT1H-10-6P connector (mating connector sold separately)
5 for Lightening protected amplifier box (4-20 ma only)
|
(3)
|
Pressure Range (PSI)
|
| |
Select
002 for 0-2 psi
005 for 0-5 psi
010 for 0-10 psi
015 for 0-15 psi
020 for 0-20 psi
025 for 0-25 psi
050 for 0-50 psi
075 for 0-75 psi
100 for 0-100 psi
150 for 0-150 psi
200 for 0-200 psi
250 for 0-250 psi
300 for 0-300 psi
500 for 0-500 psi
750 for 0-750 psi
1K for 0-1000 psi
1.5K for 0-1500 psi
2K for 0-2000 psi
3K for 0-3000 psi
3.5K for 0-3500 psi
5K for 0-5000 psi
7.5K for 0-7500 psi
10K for 0-10000 psi
20K for 0-20000 psi
30K for 0-30000 psi
|
(4)
|
Units
|
| |
Select
A for Absolute Pressure
G for Gage Pressure
S for Sealed Gage Pressure
|
(5)
|
Output
|
| |
Select
V for mV/V Output
5T for 0-5 Volt Output
5Z for Isolated 0-5 Volt Output
10T for 0-10 Volt Output
I for 4-20 mA Output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
