Regulated Power Supply for Transducers and Bridges, Adjustable 4 to 15 Vdc Output
PST-4130
5 year warranty

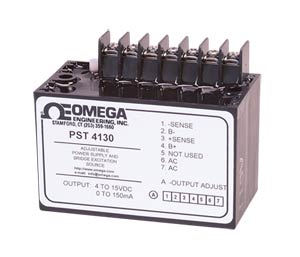

PST-4130:Regulated Power Supply for Transducers and Bridges, Adjustable 4 to 15 Vdc Output
Click for larger image.

¥ 2,435.00  PST-4130
• Adjustable 4 to 15 Vdc Output
• Up to 150 mA Current
• Well Suited for 120 ½ and 350 ½ Strain Gages
• Can Power Multiple Pressure Transducers or Load Cells
• Screw Terminal Connections

View related products - Accessories for Pressure Measurement

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PST-4130 is an ac line powered adjustable output power source designed for strain gages, load cells and pressure transducers. It can also be used as a high quality voltage source or reference in many applications. The PST-4130 has a split bobbin transformer for high line isolation. It also has remote sensing to eliminate line drop errors, and features excellent regulation, stability, and very low noise.

SPECIFICATIONS
Input: 115 Vac ±10% 50 to 60 Hz
Output Voltage: Adjustable 4 to 15 Vdc
Output Current: 150 mA max.
Line and Load Regulation: 0.005%
Noise: 0.5 mV rms
Operating Temperature: 0 to 70°C (32 to 158°F)
Temperature Effect: 50 ppm/°C
Storage Temperature: -25 to 85°C (-13 to 185°F)
Line Isolation: 1500 Vdc
Weight: 18 oz (510 grams)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PST-4130 44 Weeks   ¥2,435.00    Adjsutable regulated power supply for transducers and bridges, 115 vac power
 PST-4130-220V    Consult sales   Adjsutable regulated power supply for transducers and bridges, 220 vac power
 Accessories
 DIN400    Consult sales   DIN Rail Mounting Kit
 Power Cord-SE 5 Weeks   ¥103.00    AC Power cord with stripped end termination
† Price are shown in RMB.

 Ordering Example: (1) PST-4130 115 Vac powered adjustable power supply for transducers and bridges, ¥2,435.00
