Temperature Transmitter with Display and RTD Sensor |
| PRTXD Series |
|
 |
|
|
Temperature Transmitter with Display and RTD Sensor
 |
| Click for larger image. |
|
|
¥
6,100.00

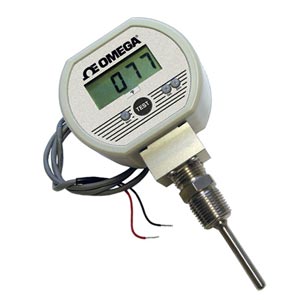

PRTXD-4
|
| • |
Two-Wire Transmitter
|
| • |
4 to 20 mA Output
|
| • |
3 1/2 Digit Display
|
| • |
RTD Probe Included, Available with 4" or 12" Immersion Lengths, Fixed Length or Spring Loaded for Thermomell Use
|
| • |
NEMA 4X (IP66) Housing
|
View related products - Temperature Transmitters
|
| |
|
|
|
 |
The PRTXD Series are two-wire
transmitters that provide a 4 to 20 mA
signal representing temperature.
The units include a 3 1/2 digit display
and the RTD sensor. The NEMA 4X
(IP66) housing protects the
electronics.
Units are available with
4 inch or 12 inch fixed length or
spring loaded RTD probes. Spring loaded
RTD probes provide good thermal contact
when used in thermowells.
SPECIFICATIONS
Sensor: 100 W RTD element, 0.00385 alpha coefficient IEC-751 class B: ±0.3°C at 0°C, ±1.1°C at 150°C
Display: 41.2 digit LCD, 1.2" digit height, 4 readings per second, nominal display update rate
Out of Range Indication:
ALARM 1: On display above 200°C (392°F)
ALARM 2: On display below -50°C (-58°F)
Loop Supply Voltage: Any DC supply/loop resistance that maintains 8 to 32 Vdc at gauge terminals (reverse polarity protected)
Loop Output Characteristics: 4 to 20 mA output (see chart for loop voltage characteristics), minimum 8 V required at gauge terminals at all times for proper operation
Test Function: Front panel TEST button when held, sets loop current and display to test calibration level, independent of temperature input to allow testing of system operation
Wiring Connections
(See Drawing): 0.9 m (3') long, 2-conductor 22 AWG cable
Material and Color: NEMA 4X (IP66) ABS/Polycarbonate housing, light gray gasketed rear cover connection and
probe material: 1.2 NPT male hex nipple, 316 stainless steel probe sheath
Operating Temperature (Electronics): -20 to 85°C (-4 to 185°F)
Storage Temperature: -40 to 95°C (-40 to 203°F)
Weight:
Transmitter: Approx 340 g (12 oz)
Shipping Weight: Approx 450 g (1 lb)
Range: -50 to 200°C (-58 to 392°F)
Resolution: 0.1 degree
Accuracy: ±0.1% of span plus max sensor error of ±0.3°C at 0°C or ±1.1°C at 150°C
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
* Spring-Loaded typically used with Thermowell
Ordering Example: (1) PRTXD-4 RTD Temperature Transmitter 4 inches long, ¥6,100.00
|
|
|
|
|
| |
|
