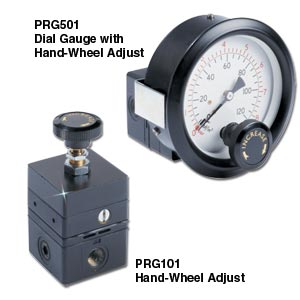

The PRG101 and PRG501 Series pressure regulators have an advanced design, consisting of a precision measurement capsule and a high gain servo amplifier to achieve high performance. The regulator can be used in a "dead end" application and will exhaust whenever the setpoint is lowered. Changes in supply pressure have a minimal effect on regulation accuracy. The regulator can be panel or pipe mounted. The PRG101 has two gage ports available for mounting Omega pressure gages for local indication. The PRG501 is ideal for having a dial gage reading when the unit is panel mounted. The dial gage is exterior to the panel.
SPECIFICATIONS Maximum Supply (Input) Pressure: 150 psi (1000 kPa) Minimum Supply (Input) Pressure: 3 psi above desired output pressure Minimum Regulated Pressure: 2 psi Media: Dry gases only (oil free) filtered to better than 25 microns Flow Capacity: 10 SCFM max Sensitivity: 0.005 psi Hysteresis and Repeatability: 0.05% setting Working Temperature: -20 to 70°C (0 to 160°F) PRG501 Dial Gauge: Dual scale psi and bar Response Time to 50% Load Change: 0.2 seconds Housing: IP65 sealed, Zinc diecasting, epoxy painted Diaphragm Material: Nitrile reinforced elastomers Capsule Material: Beryllium copper Mounting: Any attitude; integral mounting nut supplied Pressure Gauge (PRG501): Phosphor bronze bourdon tube Process Connection: ¼ NPT female (pneumatic only) Number of Turns in Control Range: 2-½ hand wheel turns Weight: PRG101: 0.75 kg (1.60 lb) PRG501: 1.15 kg (2.50 lb)
Model No.
Adjustable Range
Consumption @ Mid-Range
Regulation Accuracy (15 psi Supply Pressure Change at Midrange)
PRG101 Series with Hand-wheel Adjustment
PRG101-25
2 to 25 psig
0.01 scfm
0.1%
PRG101-60
2 to 60 psig
0.02 scfm
0.05%
PRG101-120
2 to 120 psig
0.04 scfm
0.02%
PRG501 Series with Dial Gauge and Hand-wheel Adjustment
