Cut To Length RTD PT100 Sensor Probe For Field Adaptable Applications |
| PRCTL Series |
|
 |
|
|
|
|
|
¥
930.00

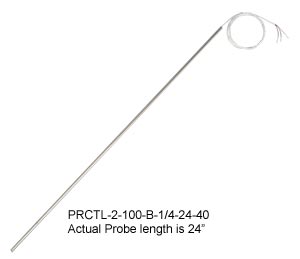

PRCTL-2-100-B-1/4-24-40
|
| • |
Probe Is Supplied 24" Long and Designed To Be Cut-To-Length as Needed Using a Simple Tube Cutter.
|
| • |
Great For Use As Replacement Sensors, Can Be Combined With a Wide Variety Of Spring Loaded Fittings, Compression Fittings, Connection Heads, Thermowells, Connectors or Other Accessories to Fit a Wide Variety of Applications.
|
| • |
Contains a Precision pt100 Ω DIN Platinum Thin Film Element in Either Class A or Class B Accuracies.
|
| • |
Temperature Range: -50 to 260ºC
|
| • |
All Sensors Supplied to IEC60751/ASTM E-1137 Color Codes
|
View related products - RTD (PT100) Probes, Elements and Assemblies
|
| |
|
|
|
 |
This pt100 RTD sensor probe is designed to provide the ultimate in adaptability. Its 24" length can be reduced in the field by cutting off the required tube length using a standard tube cutter. Combining the PRCTL sensor with Omega's wide variety of fittings and accessories can customize this sensor on the spot for a wide variety of RTD replacement probe or OEM RTD sensor probe applications.
This sensor is available in both Class A and Class B accuracies, in 3 wire standard (4-wire optional) in 1/4" diameter to fit many thermowells, or in 3/16", 6mm and 4.5mm diameters.
|
|
|
|
|
|
† Price are shown in RMB.
Note:
Standard Options:For sheath lengths greater than 24" change model number to length desired and add $1 per inch to the price. For wire lengths greater than 40", change model number to length desired and add $1 per foot to the price.
Metric Options: For sheath lengths greater than 600mm change model number to length desired and add $1 per 25mm to the price. For wire lengths greater than 1 meter, change model number to length desired and add $3 per meter to the price.
All:For 4 wire configuration change “2” to “3” in the model number.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) PRCTL-2-100-B-1/4-24-40 1/4, ¥930.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Accuracy Class
|
| |
Select
A for Class A
B for Class B
|
(2)
|
Sheath Diameter
|
| |
Select
1/4 for 1/4 Diameter
3/16 for 3/16 Diameter
M6 for 6mm Diameter
M4.5 for 4.5mm Diameter
|
(3)
|
Sheath Length
|
| |
Select
24 for 24 Length
600 for 600mm Length
|
(4)
|
Cable Length
|
| |
Select
40 for 40 Length
1 for 1 meter Length
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
