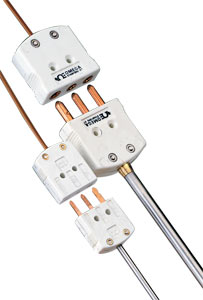

RTD Probe with Standard Connector

PR-13

RTD Probe With Standard Connector For Easy Connection

Click for larger image.

^¥ 700.00 PR-13H-3-100-1/4-6

•	Standard male 3-prong connector (mating female sold separately)
•	Low temperature range: -50 to 250°C (-58 to 482°F)
•	High temperature range: -50 to 450°C (-58 to 842°F)
•	Extreme temperature range: -200 to 600°C (-328 to 1112°F)
•	Class "A" accuracy* conforming to IEC 60751
•	Diameters available: 1/8", 3/16" and 1/4"
•	316 stainless steel sheath construction
•	PT100 Ω and PT1000 Ω platinum element offered
•	Standard probe lengths of 2, 3, 4, 6, 9, 12, 18 and 24 in.
View related products - RTD (PT100) Probes, Elements and Assemblies

The PR-13 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-13(L,H,E)*. The older models have been discontinued.

The PR-13 RTD probe assembly has a 3-prong Omega "OTP" standard style connector for easy connection to extension cables, hand-held meters or other instrumentation. Probe diameter is 1/8", 3/16" or 1/4". The measuring portion of the probe can be simply inserted into a container to measure liquid temperature, or fixed into place in a pipe, tank, or vessel using an optional "BRLK" or "SSLK" compression fitting. These probes can be ordered with PT100 or PT1000 resistance element.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PR-13H-3-100-1/4-6	2 Weeks	¥700.00	RTD probe with connector, 6 in length	qty.

PR-13E-3-100-1/8-6	7 Weeks	¥940.00	RTD probe with connector, 6 in length	qty.

PR-13L-3-100-1/4-12	7 Weeks	¥680.00	RTD probe with connector, 12 in length	qty.

PR-13H-3-100-1/8-9	7 Weeks	¥730.00	RTD probe with connector, 9 in length	qty.

PR-13E-3-100-1/8-12		¥1,150.00	RTD probe with connector, 12 in length	qty.

PR-13E-3-100-1/4-4	2 Weeks	¥870.00	RTD probe with connector, 4 in length	qty.

PR-13L-3-100-1/4-3	7 Weeks	¥585.00	RTD probe with connector, 3 in length	qty.

PR-13E-3-100-1/4-18	2 Weeks	¥1,250.00	RTD probe with connector, 18 in length	qty.

PR-13L-3-100-1/4-9	2 Weeks	¥655.00	RTD probe with connector, 9 in length	qty.

PR-13H-3-100-1/4-18	7 Weeks	¥830.00	RTD probe with connector, 18 in length	qty.

PR-13H-3-100-1/4-9	7 Weeks	¥730.00	RTD probe with connector, 9 in length	qty.

† Price are shown in RMB.

Part Number Builder

	(1)		(2)	(3)		(4)		(5)
P P R R - - 1 1 3 3		- -			- -		- -
Qty:

Option Descriptions

(1)

RANGE

Select
L for LOW (-50 to 250°C)
H for HIGH (-50 to 450°C)
E for EXTREME (-200 to 600°C)

(2)

NUMBER OF WIRES

Select
3 for 3-WIRE

(3)

OHMS

Select
100 for 100 OHMS
1000 for 1000 OHMS

(4)

SHEATH DIAMETER

Select
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER

(5)

SHEATH LENGTH

Select
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
9 for 9 INCHES
12 for 12 INCHES
18 for 18 INCHES
24 for 24 INCHES

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Keywords:The PR-13 RTD probe assembly has a 3-prong Omega "OTP" standard style connector for easy connection to extension cables, hand-held meters or other instrumentation.
