 - Discontinued External Pressure Modules
For PCL340 Series, PCL1000 and PCL1200 Calibrators

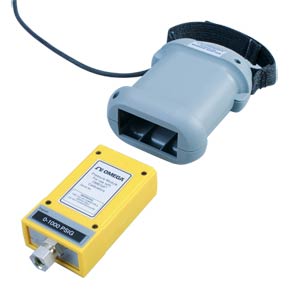

PCL-PM Series

PCL-PM Series: - Discontinued External Pressure ModulesFor PCL340 Series, PCL1000 and PCL1200 Calibrators
Click for larger image.

Click to scroll below to order See Specs PDF View a printer friendly page

The PCL-PM series has been discontinued. Please see the DPG4000-KIT in combination with PCL1000.html a as comprehensive calibration solution or contact our Pressure Engineering department.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Pressure Module Adaptor (required)
 PCL-PMA    Consult sales   Pressure module adaptor (one required)
 Gage Pressure Modules
 PCL-PM005G    Consult sales   0 to 5 psig (0 to 350 mbar) Pressure Module
 PCL-PM007G    Consult sales   0 to 7 psig (0 to 500 mbar) Pressure Module
 PCL-PM010G    Consult sales   0 to 10 psig (0 to 700 mbar) Pressure Module
 PCL-PM030G    Consult sales   0 to 30 psig (0 to 2 bar) Pressure Module
 PCL-PM050G    Consult sales   0 to 50 psig (0 to 3.5 bar) Pressure Module
 PCL-PM100G    Consult sales   0 to 100 psig (0 to 7 bar) Pressure Module
 PCL-PM150G    Consult sales   0 to 150 psig (0 to 10 bar) Pressure Module
 PCL-PM300G    Consult sales   0 to 300 psig (0 to 20 bar) Pressure Module
 PCL-PM1KG    Consult sales   0 to 1000 psig (0 to 70 bar) Pressure Module
 PCL-PM1.5KG    Consult sales   0 to 1500 psig (0 to 100 bar) Pressure Module
 PCL-PM3KG    Consult sales   0 to 3000 psig (0 to 200 bar) Pressure Module
 PCL-PM5KG 2 Weeks   ¥9,295.00    0 to 5000 psig (0 to 340 bar) Pressure Module
 Vacuum Pressure Modules
 PCL-PM005VAC    Consult sales   0 to -5 psig (0 to -350 mbar) vacuum pressure module
 PCL-PM015VAC    Consult sales   0 to -15 psig (0 to -1 bar) vacuum pressure module
 Absolute Pressure Modules
 PCL-PM015A    Consult sales   0 to 15 psia (0 to 1 bar) absolute pressure module
 PCL-PM030A    Consult sales   0 to 30 psia (0 to 2 bar) absolute pressure module
 PCL-PM050A    Consult sales   0 to 50 psia (0 to 3.5 bar) absolute pressure module
 PCL-PM100A    Consult sales   0 to 100 psia (0 to 7 bar) absolute pressure module
 PCL-PM300A    Consult sales   0 to 300 psia (0 to 20 bar) absolute pressure module
 Compound Pressure Modules
 PCL-PM015C    Consult sales   -15 to 15 psig (-1 to 1 bar) Compound Pressure Module
 PCL-PM030C    Consult sales   -15 to 30 psig (-1 to 2 bar) Compound Pressure Module
 Differential Pressure Modules
 PCL-PM005D    Consult sales   0 to 5 psid (0 to 350 mbar) differential pressure module
 PCL-PM030D    Consult sales   0 to 30 psid (0 to 2 bar) differential pressure module
 PCL-PM050D    Consult sales   0 to 50 psid (0 to 3.5 bar) differential pressure module
† Price are shown in RMB.

 Note: Supplied with NIST-traceable calibration certificate. See "Related Links" below for products compatable with the PCL-PM series modules. All modules have a 1/8" NPT female pressure port.
  Ordering Example: (1) PCL1000 High accuracy multifunction calibrator, ¥15,200.00


Keywords:External Pressure Modules For pcl340 series, pcl1000, and Pcl1200 calibrators, measurement sensor
