Handheld Loop Calibrators
Loop Calibrators and precision Voltage Calibrators

Handheld Loop Calibrators
Loop Calibrators and precision Voltage Calibrators:Handheld Loop Calibrators
Click for larger image.

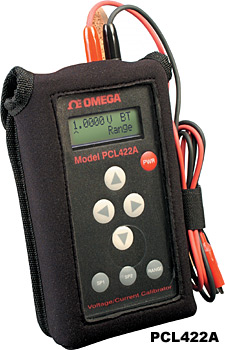

• PCL422A Features:
• Back-Lighted Display for Visibility in Low Light Areas or at Night
• RS232 Communications Model PCL422
• Mid-Range Key Sets
• Output to 2V, 20 V, or 24 mA Depending Upon Pre-selected Range
• Built-In 20 V Supply for Driving Current Loop
• Two Modes of Operation (Source and Simulate)
• PCL401 Features:
• Five Precalibrated Settings: 4, 8, 12, 16 and 20 mA
• Easy One-Hand Operation
• Source Mode Provides upto 30 Vdc Excitation
• Simulate Mode Controls Loop Current with External Power

View related products - Instrumentation for Pressure and Strain Measurements

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

PCL422A SPECIFICATIONS
Accuracy: 0.05% FS
Ranges: 0-19.99 mA; 0-1.999 V; 0-19.99 V; 0-24 mA
Operating Temperature: -18 to 40°C (0 to 104°F)
Temperature Stability: 50 ppm/°C
Power: 9 V battery - included
Weight: 340 g (12 oz)

PCL401 SPECIFICATIONS
Accuracy: +0.075% FS
Temperature Stability: 100 ppm/°C
Internal Power: 9 V battery
External Power: up to 30 Vdc max.
Max. Loop Resistance: 300Ohm
Operating Temp.: -18 to 49°C (0 to 120°F)
Battery: 9 V included, Life: > 25 hr
Dimensions:25 H x 61 W x 96.5 mm D (1.0 H x 2.4 W x 3.8" D)
Weight: 227 g (8 oz)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PCL401    Consult sales   MINIATURE LOOP CALIBRATOR
 PCL422A    Consult sales   PORTABLE VOLTAGE AND CURRENT CALIBRATOR
† Price are shown in RMB.

 Note: PCL422A Supplied with lead set, flexible protective sleeve, 9 V battery and complete operator’s manual. PCL401 Supplied with 8 inch leads with alligator clips, 9 V battery and complete operator’s manual

 Related Links - Manual
 Product Manual
   Download  PCL401 - Mini-Source Portable Calibrator
   Download  PCL422A - Precision Voltage/Current Calibrator
