High Temperature Non-Contact Infrared Thermometer/Transmitter

OS555A Series
2 year warranty CE OmegaCare

Non-Contact Infrared Thermometer/Transmitter

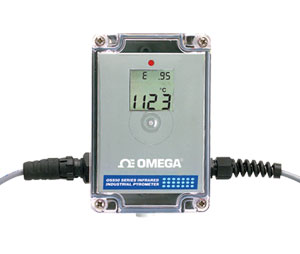

OS555A Series:High Temperature Non-Contact Infrared Thermometer/Transmitter
Click for larger image.

Measure from 538 to 2482°C (1000 to 4500°F)
See Thru Glass Window Applications
1% Rdg Accuracy
110:1 Field of View
Voltage/Current Analog Output
Fast 100 ms Response Time
Backlit LCD
Adjustable Emissivity
High/Low Alarms
Data Storage and Logging
RS232 Communications- Free User Software Included
Available with NEMA 4 (IP65) Plastic or Aluminum Housing, or with No Case for OEM Applications

View related products - Process Measurement and Control Instruments

Click to scroll below to order See Specs PDF View a printer friendly page

 The OMEGA OS555A Series industrial high performance thermometer/transmitters offer a high temperature range of 538 to 2482ºC (1000 to 4500ºF), 110 to 1 optical field of view, any voltage or current analog output to feed directly to panel meters, recorders, temperature/ process controllers, data loggers, and data acquisition systems. It also offers adjustable Emissivity, high and low alarm outputs, PC serial interface, temperature data logging in real-time, and fast response time of 100 msec.

These ruggedly designed units are ideal for high temperature measurement and see through glass window applications.

SPECIFICATIONS
General:
Range: 538 to 2482°C (1000 to 4500°F)
Accuracy: ±1% rdg to 1093°C (2000°F); ±2% rdg for higher temperatures; 25°C ambient, 0.95 Emissivity
Repeatability: ±(1% rdg + 1 digit)
Spectral Response: 2 to 2.5 microns
Emissivity: 0.10 to 1.00 in 0.01 steps
Field of View: 110 to 1
Response Time: 100 ms, 0 to 63.5% of final value
Display: Backlit LCD
Analog Output: 1 mV/degree, 0 to 5 Vdc or 4 to 20 mA
Alarms: High and low; red LED and audible indicators; two 100 mA current drives for external relays
Power: 8 to 24 Vdc, 80 mA
PC Interface: RS232, 2-way

Environmental Specifications:
Rating: NEMA 4 (IP65); sensor head and plastic or aluminum electronics enclosure
Operating Ambient: 0 to 50°C (32 to 122°F) electronics and standard sensing head; 85°C (185°F) max temp for sensing head with water cooled jacket

Physical Dimensions:
Sensing Head: 109 L x 41 OD mm (4.3 x 1.63"); 1.5-20 thread
Electronics, Plastic Case: 120 H x 80 W x 51 L mm (4.75 x 3.15 x 2")
Electronics, Aluminum Case: 115 H x 90 W x 56 L mm (4.5 x 3.5 x 2.2")
Connections: 4.5 m (15') sensor head and power/output cables included
Weight: 0.45 kg (12 oz) sensing head; 1.2 kg (42.3 oz) plastic case Laser Sighting

Laser Sighting:
Wavelength: 650 nm, red
Operating Distance: Up to 12 m (40')
Max Laser Power Output: Less than 1 mW
Classification: FDA Class II Laser product; European Class 2
Beam Diameter: 5 mm
Operating Ambient: 0 to 50°C (32 to 122°F)

PLEASE REVIEW PRODUCT SPEC SHEET FOR COMPLETE PRODUCT SPECIFICATIONS.
CONTACT TEMPERATURE ENGINEERING FOR ADDITIONAL PRODUCT INFORMATION
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 OS555A-MA    Consult sales   Plastic (NEMA 4) Enclosure, 4-20 mA output
 OS555A-V1    Consult sales   Plastic (NEMA 4) Enclosure, 0-5 Vdc output
 OS555A-MV    Consult sales   Plastic (NEMA 4) Enclosure, 1mV/degree output
 OS555AM-MA    Consult sales   Aluminum (NEMA 4) Enclosure, 4-20 mA output
 OS555AM-V1    Consult sales   Aluminum (NEMA 4) Enclosure, 0-5 Vdc output
 OS555A-MA-BB    Consult sales   No Enclosure (for OEM Applications), 4-20 mA output
 OS555A-V1-BB    Consult sales   No Enclosure (for OEM Applications), 0-5 Vdc output
 Accessories
 OS550-AP 2 Weeks   ¥685.00    Air purge collar
 OS550-WC 2 Weeks   ¥2,070.00    Air/water cool jacket
 OS550-MF In Stock   ¥685.00    Mounting flange
 OS550-MB 2 Weeks   ¥372.00    Right angle mounting bracket
 OS550-MN 2 Weeks   ¥160.00    Mounting nut
 OS550-LS 101 Weeks   ¥2,070.00    Laser sighting**
 CAL-3-IR-X    Consult sales   NIST calibration certification for over 1000°F temp
 PSR-24S    Consult sales   Regulated 24 Vdc @ 400 mA supply, 90 to 264 Vac input, screw terminal
 PSR-24L 101 Weeks   ¥765.00    Regulated 24 Vdc @ 400 mA supply, 90 to 264 Vac input, stripped leads
 WRS232-USB 2 Weeks   ¥3,275.00    Wireless RS232 transceiver kit
 TX8-100 8 Weeks   ¥1,200.00    Power/output extension cable, 30 m (100')
 OM-CONV-USB In Stock   ¥206.00    RS232 to USB interface converter
 OS550A-PCAB-15    Consult sales   Power/output cable connector, 4.5 m (15')
 OS550A-PCAB-100    Consult sales   Power/output cable connector, 30 m (100')
Price are shown in RMB.

 Note: Sensor head cable can be extended at the factory at time of purchase to a maximum of 15 m (50'). Add suffix "-(*)FT" to order number and $1.00 per 0.3 m (1') over 5 m (15') to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
   Part Number Builder
(1) (2) (3)
O
O
S
S
5
5
5
5
5
5
A
A
Qty:
Option Descriptions
(1) Electronics Enclosure
  Select
Nothing(leave field blank) for Plastic or No Enclosure
M for Aluminum
(2) Analog Output Signal
  Select
MA for 4 to 20 mA
V1 for 0 to 5 Vdc
MV for 1mV/degree
(3) OEM Options
  Select
Nothing(leave field blank) for Non-OEM
BB for No Enclosure
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
