Industrial Non-Contact Infrared Thermometer/Transmitter with Local Display, Dual Alarm and Analog Output
OS550A Series
2 year warranty CE

Industrial Non-Contact Infrared Thermometer Transmitter

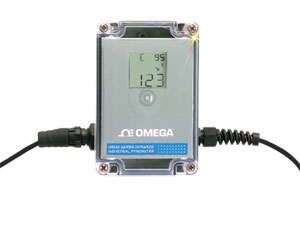

OS550A Series:Industrial Non-Contact Infrared Thermometer/Transmitter with Local Display, Dual Alarm and Analog Output
Click for larger image.

• Visual and Audible High and Low Alarms with Red LED Indication (OS551A has High Alarm only)
• Voltage Alarm Outputs to Drive External Relays
• Fast 100 msec Response Time
• Two-Way RS232 Communication Available
• Aluminum Case NEMA 4 Available
• Wireless RS232 Communication Available
• Accuracy ±1% of Reading
• Models with Temperature Ranges Measuring Up to 1370°C (2500°F)
• Current, Voltage, or Millivolt Output
• Laser Sight Optional
• °C/°F Keypad Selectable
• Local Backlit LCD Display Standard
• Dual Display Indicates Current plus Min, Max, Average, or Differential Temperatures on All Models
• Emissivity Adjustable from 0.1 to 1.00 in 0.01 Steps via the Programmable Keypad
• The Sensor Head & the Electronic Box are a matched set

View related products - Infrared Temperature Measurement Instruments

Click to scroll below to order See Specs PDF Manuals Software View a printer friendly page

OMEGA's OS550A Series (Upgrade from OS550 Series) industrial, high performance, economical thermometer/transmitter offers a wide choice of temperature ranges, optical fields of view and 3 analog outputs (1 mV/degree, 4 to 20 mA, and 0 to 5 Vdc) to feed directly into panel meters, recorders, temperature/process controllers, data loggers, data acquisition systems, or other process instrumentation.

Since the OS550A Series infrared thermometers do not use chopper motors or vibrator mechanisms, they can be mounted in any position and in hostile environments without suffering any loss in performance.

SPECIFICATIONS
Accuracy: ±1% of reading @ 25°C ambient or 1.7°C (3°F), whichever is greater
Repeatability: ±1% rdg ±1 digit
Spectral Response: 8 to 14 microns
Emissivity Range: 0.10 to 1.00
Field of View (FOV): See diagrams
Display: Backlit LCD
Transmitter Outputs: 1 mV/degree, 0 to 5 Vdc or 4 to 20 mA
Power: 8 to 24 Vdc @ 80 mA
Environmental Ratings: NEMA 4 (IP65) water-tight and dust-tight for sensing head and electronics enclosure
Ambient Operating Range: Sensing head 0 to 50°C (32 to 122°F) with OS550-WC; 0 to 85°C(32 to 185°F)
Response Time: 100 msec; 0 to 63.2% final value
Alarms: Visual and audible
Alarm Output: Voltage, 100 mA drive
RS232: Standard on OS552A, OS553A and OS554A models; two-way communication; PC compatible software included
Connection: 4.5 m (15') sensor head and power/output cables included
Dimensions:
    Sensing Head: 10.9 x 4.1 cm(4.30 x 1.63"), 11.2 to 20 thread
    Electronics: 12 x 80 x 50.8 cm(4.75 x 3.15 x 2")
Weight:
    Sensing Head: 0.45 kg (12 oz)
    0S550A Electronics Mounted in NEMA 4 (IP65) Enclosure: 1.2 kg (43.2 oz)
Max Laser Power Output: < 1 mW Class II laser product

PLEASE REVIEW PRODUCT SPEC SHEET FOR COMPLETE PRODUCT SPECIFICATIONS.
CONTACT TEMPERATURE ENGINEERING FOR ADDITIONAL PRODUCT INFORMATION
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 OS551A-MV-1    Consult sales   -23 to 400°C (-10 to 750°F), Spot size 8.9mm @ 609 mm (0.35 @ 24'), 1 mV/deg Output
 OS551A-MA-1    Consult sales   -23 to 400°C (-10 to 750°F), Spot size 8.9mm @ 609 mm (0.35 @ 24'), -23 to +400°C (-10 to + 750°F), Spot size 25.4 @ 508 mm (1 @ 20'), 0-5 Vdc Output
 OS551A-MA-3    Consult sales   -23 to +400°C (-10 to + 750°F), Spot size 25.4 @ 508 mm (1 @ 20'), 4-20 mA Output
 OS551A-MA-6    Consult sales   -23 to 400°C (-10 to 750°F), Spot Size 3.8mm @ 152 mm .15' @ 6', 4-20 mA Output
 OS551A-V1-3    Consult sales   -23 to +400°C (-10 to + 750°F), Spot size 25.4 @ 508 mm (1 @ 20'), 0-5 Vdc Output
 OS551A-V1-6    Consult sales   -23 to 400°C (-10 to 750°F), Spot Size 3.8mm @ 152 mm .15' @ 6', 0-5 Vdc Output
 OS552A-V1-3    Consult sales   -10 to +1000°F (-23 to + 538°C, Spot size 25.4 @ 508 mm (1 @ 20'), 0-5 Vdc Output
 OS553A-MA-2    Consult sales   -10 to +1600°F (-23 to +871°C) , Spot size 12.7mm @ 76 mm .5' @ 3', 4-20 mA Output
 Recommended Items
 WRS232-USB 2 Weeks   ¥3,905.00    Wireless RS232 transceiver
 OS550-AP 2 Weeks   ¥815.00    Air purge collar
 OS550-WC 2 Weeks   ¥2,465.00    Air/water cooling jacket
 OS550-MF In Stock   ¥815.00    Mounting frame
 OS550-MB 2 Weeks   ¥440.00    Right-angle mounting bracket
 OS550-MN 2 Weeks   ¥190.00    Mounting nut
 OS550-LS 101 Weeks   ¥2,465.00    Laser sighting*
 CAL-3-IR    Consult sales   NIST calibration certification
 CAL-3-IR-X    Consult sales   NIST calibration for over 1000°F temp
 PSR-24S    Consult sales   Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, screw terminals, UL
 PSR-24L 101 Weeks   ¥910.00    Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL
 PSR-24L-230 2 Weeks   ¥910.00    Regulated power supply, European plug, 230 Vac input, 24 Vdc output, 400 mA, stripped leads, CE
 TX8-100 2 Weeks   ¥1,555.00    Power/output extension wire 30 m (100')
 OS550A-PCAB-15    Consult sales   4.6m (15') Power/ output cable with connector
 OS550A-PCAB-100    Consult sales   30m (100') Power/ output cable with connector
† Price are shown in RMB.

 Note: Sensor head cable can be extended at the factory at time of purchase to a maximum of 15 m (50'). Add suffix "-(*)FT" to order number and $1.00 per 0.3 m (1') over 5 m (15') to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
   Part Number Builder
(1) (2) (3)
-
-
-
-
Qty:
Option Descriptions
(1) IR Thermometer/Transmitter
  Select
OS551A for IR Thermometer/Transmitter with -10 to +750°F (-23 to +400°C) Temp Range
OS552A for IR Thermometer/Transmitter with -10 to +1000°F (-23 to + 538°C) Temp Range
OS553A for IR Thermometer/Transmitter with -10 to +1600°F (-23 to +871°C) Temp Range
OS554A for IR Thermometer/Transmitter with 0 to +2500°F (-18 to +1370°C) Temp Range
OS551AM for IR Thermometer/Transmitter with Aluminum Case NEMA 4 (IP65) Option -10 to +750°F (-23 to +400°C) Temperature Range
OS552AM for IR Thermometer/Transmitter with Aluminum Case NEMA 4 (IP65) Option -10 to +1000°F (-23 to + 538°C) Temperature Range
OS553AM for IR Thermometer/Transmitter with Aluminum Case NEMA 4 (IP65) Option -10 to +1600°F (-23 to +871°C) Temperature Range
OS554AM for IR Thermometer/Transmitter with Aluminum Case NEMA 4 (IP65) Option 0 to +2500°F (-18 to +1370°C) Temperature Range
(2) Output Type
  Select
MV for 1 mV/deg.
MA for 4-20 mA
V1 for 0-5 Vdc
(3) Optical Range Code
  Select
1 for Spot Size 8.9mm @ 609 mm .35" @ 24"
2 for Spot Size 12.7mm @ 76 mm .5" @ 3"
3 for Spot Size 25.4mm @ 508 mm 1" @ 20"
4 for Spot Size 25.4mm @ 762 mm1" @ 30"
5 for Spot Size 25.4mm @ 1524 mm 1" @ 60"
6 for Spot Size 3.8mm @ 152 mm .15" @ 6"
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
