Industrial Non-Contact Infrared Thermometer/Transmitter OEM |
| OS550A-BB Series |
|
 |
|
|
Industrial NonContact Infrared Thermometer Transmitter OEM
 |

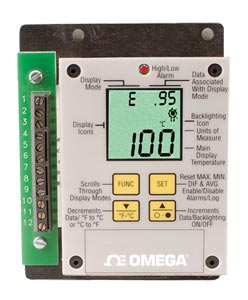

| Click for larger image. |
|
|
|
|
| • |
Accuracy ±1% of Reading
|
| • |
Models with Temperature Ranges Measuring Up to 1370°C (2500°F)
|
| • |
Current, Voltage, or Millivolt Output
|
| • |
Visual and Audible High & Low Alarms with Red LED indication
|
| • |
Voltage Alarm outputs to drive external Relays
|
| • |
Fast 100 msec Response time
|
| • |
Laser Sighting Optional
|
| • |
°C/°F Keypad Selectable
|
| • |
Local Backlit LCD Display Standard
|
| • |
Dual Display Indicates Current plus Min, Max, Average, or Differential Temperatures on All Models
|
| • |
Emissivity Adjustable from 1.00 to 0.1 in 0.01 Steps via the Programmable Keypad
|
| • |
Two way RS232 communication available
|
| • |
Wireless RS232 communication available
|
| • |
The Sensor Head & the Electronic board are a matched set.
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
OMEGA’s OEM style OS550A-BB series industrial,
high-performance, economical thermometer/
transmitter offers a wide choice of temperature ranges,
optical fields of view and 3 analog outputs (1 mV/ deg,
4 to 20 mA, and 0 to 5 Vdc) to feed directly into panel
meters, recorders, PLCs, temperature/ process
controllers, data loggers, data acquisition systems, or
other process instrumentation.
Since the OS550A-BB Series infrared thermometers
do not use chopper motors or vibrator mechanisms,
they can be mounted in any position and in hostile
environments without suffering any loss in
performance.
This OEM design coupled with relatively small
dimensions makes these sensors ideally suited for a
wide variety of applications.
SPECIFICATIONS
Accuracy: ±1% of reading @ 25°C ambient or 3°F, whichever is greater
Repeatability: ±1% rdg ±1 digit
Spectral Response: 8 to 14 microns
Emissivity Range: 1.00 to 0.1 in 0.01 steps
Field of View (FOV): See diagrams
Display: Backlit LCD
Transmitter Outputs: 1 mV/ degree, 0 to 5 Vdc, or 4 to 20 mA
Power: 8 to 24 Vdc @ 80 mA
Environmental Ratings: NEMA 4 (IP65) Water-tight and dust-tight sensing head
Ambient Operating Range: Sensing head -18 to 85°C (-0.4 to 185°F) with OS550-WC; 0 to 50°C (32 to 122°F) without OS550-WC
RS232: Standard on OS552A, OS553A and OS554A models; two-way communication; PC-compatible software included
Connection: 4.5 m (15') sensor head cable Included
Dimensions:
Sensing Head: 10.9 x 4.1 cm (4.30 x 1.63"), 1½-20 thread
Electronics: 11.8 x 9.1 x 3.8 cm (4.66 x 3.60 x 1.5")
Weight:
Sensing Head: 0.45 kg (12 oz)
Main Electronics: 1.13 kg (40 oz)
Response Time: 100 msec; 0 to 63% of final value
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with sensor head, 4.6 m (15') sensor head cable, main electronics and operator’s manual. The OS552A, OS553A, and OS554A also include RS232 cable, cable connector/adaptor and CD software. Sensor head cable can be extended at the factory at time of purchase to a maximum of 15 m (50'). Add suffix "-(*)FT" to order number and $1.50 per 0.3 m (1') over 5 m (15') to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
PLEASE EDIT
|
| |
Select
1A for 1A
2A for 2A
3A for 3A
4A for 4A
|
(2)
|
Output
|
| |
Select
-MV for 1 mV/deg
-MA for 4 to 20 mA
-V1 for 0 to 5 Vdc
|
(3)
|
Optical Range
|
| |
Select
-1 for Spot size 8.9 @ 609 mm (0.35in @ 24in)
-2 for Spot size 12.7 @ 76 mm (0.5in @ 3in)
-3 for Spot size 25.4 @ 508 mm (1in @ 20in)
-4 for Spot size 25.4 @ 762 mm (1in @ 30in)
-5 for Spot size 25.4 @ 1524 mm (1in @ 60in)
-6 for Spot size 3.8 @ 152 mm (0.15in @ 6in)
|
(4)
|
Sensor head cable length
|
| |
Select
Nothing(leave field blank) for 15'
-20FT for 20'
-25FT for 25'
-35FT for 35'
-50FT for 50'
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
