OMEGASCOPE™ Handheld Infrared Thermometer
Enhanced E Versions - Now Available!  - Discontinued

OS530E Series
2 year warranty CE OmegaCare

Handheld Infrared Pyrometer
OS530E Series:OMEGASCOPE™ Handheld Infrared Thermometer Enhanced E Versions - Now Available!  - Discontinued

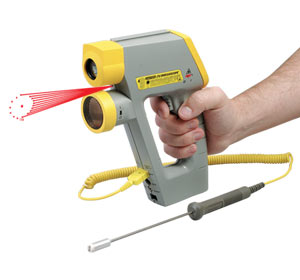

Click for larger image.

• Built-In Laser Sighting is Switchable Between Laser Dot or Circle Patterns
• The Laser Can be Flashing or Continuous
• Includes Models with High-Performance, General Purpose, Close Focus and High Resolution
• Models Available with Temperature Ranges from -23 to 871°C (-10 to 1600°F)
• Emissivity Adjustable from 1.00 to 0.10 in 0.01 Steps
• Backlit LCD Display
• Dual Digital Display Indicates Current with Min, Max, Average, or Difference Temperatures
• °C/°F Selectable
• 1 mV/Degree Analog Output Standard
• RS-232 Output Models Include FREE Data Logging Software
• Audible and Visible Alarms
• Integral Tripod Mount
• Type K Thermocouple Input Available
• Temperature Data Storage & Logging (Up to 800 Data Points) Available
• Electronic Trigger Lock
• Last Temperature Recall
• All Models Include Built-In Laser Sighting, Display and Lens Protective Bumpers, Wrist Strap, Soft Carrying Case, 4 Long Life Lithium Batteries, and User’s Manual with Emissivity Reference Chart
Click to scroll below to order See Specs PDF Manuals Software View a printer friendly page

This product is discontinued Please refer to the OS836-Series


Due to a shortage of material the Soft Case will be back ordered and shipped at a later date.

With a combination of powerful features, the portable and rugged OS530E series infrared thermometers offer solutions for many non-contact temperature measurement applications. Emissivity adjustable from 1.00 to 0.10 in 0.01 increments, the OS530E series provides versatility when measuring a variety of surfaces.

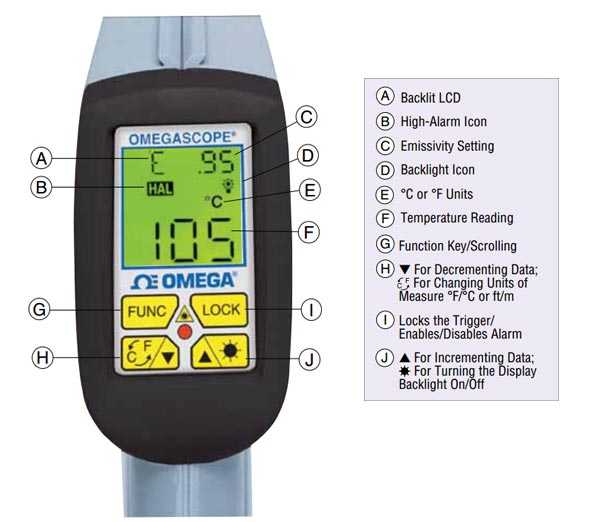

A custom backlit LCD display provides dual digital display of both current and max, min, diff or average temperatures simultaneously. This provides the user with more information at a glance. Built-in laser sighting creates a 12-point circle which clearly indicates the target area being measured.

The OS530E Series also features a high alarm setpoint, providing both audible and visual indication of the alarm status. The standard 1 mV per degree analog output allows interfacing with data acquisition equipment, including chart recorders, data loggers and computers.

All Models Feature: Adjustable Emissivity, Backlit Dual Display, Differential Temperature, Min/Max Temperature, Average Temperature, High Alarm, Audible Buzzer & Indicator, Analog Output (1mV/Deg), Laser Sight (Built-In), Trigger Lock, Last Temperature Recall. OS532E Adds Thermocouple Input, OS533E Adds Low Alarm, Ambient Target Temperature Compensation, RS-232 Output, Thermocouple Input. OS534E Adds all of the OS533E Features plus Data Storage.



Caution: This product and all in the series are not for use in medical evaluations. These products cannot be used to measure body temperature. They are meant for industrial and scientific purposes.



Model No.OS530LEOS530HREOS530LE-CFOS532EOS533E-CFOS533EOS534E-CFOS534E
Accuracy*±1% rdg±1% rdg±1% rdg±1% rdg±1% rdg±1% rdg±1% rdg±1% rdg
Range-23 to 538°C
-10 to 1000°F		-30 to 121°C
-22 to 250°F		-23 to 538°C
-10 to 1000°F		-23 to 538°C
-10 to 1000°F		-23 to 538°C
-10 to 1000°F		-23 to 538°C
-10 to 1000°F		-23 to 871°C
-10 to 1600°F		-23 to 871°C
-10 to 1600°F
Emissivityadjustableadjustableadjustableadjustableadjustableadjustableadjustableadjustable
Backlit Dual Displaystdstdstdstdstdstdstdstd
Distance to Spot Size Ratio10:120:10.15"@6"10:10.15"@6"20:10.15"@6"30:1
Differential Temperaturestdstdstdstdstdstdstdstd
Min/Max Temperaturestdstdstdstdstdstdstdstd
Average Temperaturestdstdstdstdstdstdstdstd
High Alarmstdstdstdstdstdstdstdstd
Low Alarm————stdstdstdstd
Audible Buzzer & Indicatorstdstdstdstdstdstdstdstd
Ambient Target Temp Comp.————stdstdstdstd
Analog Output1 mV/deg1 mV/deg1 mV/deg1 mV/deg1 mV/deg1 mV/deg1 mV/deg1 mV/deg
RS-232 Output————stdstdstdstd
Thermocouple Input———stdstdstdstdstd
Data Storage——————stdstd
Laser Sight (Built-In)dot/circledot/circledotdot/circledotdot/circledotdot/circle
Trigger Lockstdstdstdstdstdstdstdstd
Last Temperature Recallstdstdstdstdstdstdstdstd
* or 1.7°C (3°F), whichever is greater. Model OS530HRE has 0.1° display resolution.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 OS530HRE    Consult sales   ±1% rdg,-30 to 121°C (--22 to 250F), 20:1 FOV, Laser Dot/Circle Built-In
 OS530LE    Consult sales   ±1% rdg,-18 to 538°C (-10 to 1000 DegF), 10:1 FOV, Laser Dot/Circle Built-In
 OS530LE-CF    Consult sales   ±1% rdg, -23 to 538°C (-10 to 1000 DegF), Close Focus 0.15"@6" FOV, Laser Dot Built-In
 OS532E In Stock   ¥6,470.00    ±1% rdg,-18 to 538°C (-10 to 1000 DegF), 10:1 FOV, Laser Dot/Circle Built-In, Thermoccouple Input
 OS533E    Consult sales   ±1% rdg, -23 to 538°C (-10 to 1000 DegF), 20:1 FOV, Laser Dot/Circl Built-In, Thermocoupe Input, RS232 Output
 OS534E    Consult sales   ±1% rdg, -23 to 871°C (-10 to 1600 DegF), 30:1 FOV, Laser Dot/Circle Built-In, Thermocoupe Input, Data Storage, RS232 Output
 OS534E-CF    Consult sales   ±1% rdg, -23 to 871°C (-10 to 1600 DegF), CLOSE FOCUS FOV, Laser Dot/Circle Built-In, Thermocoupe Input, Data Storage, RS232 Output
 TRIPOD    Consult sales   Lightweight TRIPOD expands 305mm to 1.1m (12 to 45")
 UNIV-AC-100/240 2 Weeks   ¥356.00    Universal Power Adaptor 100-240 VAC for E Series Only
 Accessories
 88001K 7 Weeks   ¥1,655.00    Surface probe, up to 482°C (900°F)
 CAL-3-IR    Consult sales   NIST traceable calibration
 DV-CAM    Consult sales   Digital video camera
 HH-DM 2 Weeks   ¥880.00    Distance measuring meter w/mounting bracket (3 to 30')
 MINI-TRIPOD In Stock   ¥113.00    Replacement MINI-TRIPOD expands 142 to 279mm (5.6 to 11")
 OM-3000-SC    Consult sales   Soft carrying case (spare)
 OS520-RCC    Consult sales   Hard carrying case
† Price are shown in RMB.


 Related Links - Manual
 Product Manual
   Download  OS530LE, OS532E, OS53xE-CF,OS533E, OS534E, OS530HRE,OS523E, OS524E - OMEGASCOPE® Handheld Infrared Thermometers
   Download  OS530E Series - Quick Start Manual - OMEGASCOPE® Handheld Infrared Thermometers
   Download  OS530E, OS520E, OS550E Series - Infrared Thermometers
