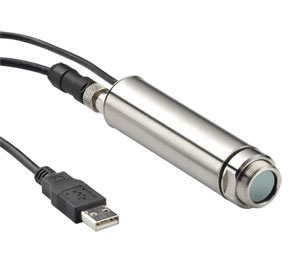

Compact Non-Contact
Infrared Temperature Transmitter
USB PC Configurable with 4 to 20 mA Output |
| OS151A-USB Series |
|
 |
|
|
|
|
|
|
|
| • |
Configurable Settings From a PC via Software and USB Cable (Included)
|
| • |
Features Max, Min Average and Instantaneous Readings; Peak or Valley Hold; Reflected Energy Compensation
|
| • |
MODBUS Over USB Communications
|
| • |
Temperature Range -40 to 1000°C (-40 to 1832ºF)
|
| • |
Emissivity: 0.1 to 1.0
|
| • |
Response Time 200 mS
|
| • |
Stainless Steel Housing, Sealed to IP65
|
| • |
Field of View: 15:1, 30:1 or Close Focus
|
| • |
4 to 20 mA Output, Loop Powered
|
| • |
Quick and Easy Installation
|
| • |
Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
The OS301A-USB Series measures temperatures
from -40 to 1000°C (-40 to 1832ºF) accurately and
consistently, with an outstanding response time of
200 mS. The 4 to 20 mA output is compatible with
almost any indicator, controller, recorder, data logger
etc. without the need for special interfacing or
signal conditioning.
OS301A-USB has 30:1 optics making it suitable for
most applications. OS801A-USB is designed for small
targets and measures a spot size of 5 mm (0.20")
diameter at 100 mm (3.9") distance. These sensors
are fully configurable from a PC using the software
and USB cable supplied. This user-friendly software
enables the user to set the range and emissivity,
compensate for reflected energy; apply filtering; select
max, min, average or instantaneous readings; and
peak or valley hold processing. These features can
also be monitored and adjusted via MODBUS for use
with 3rd-party software. Other features include data
acquisition, alarms, and a scrolling graphical display.
The sensor will operate with the 4 to 20 mA cable
connected, the USB cable connected or both. The
USB cable has an IP65 connector at the sensor end.
An IP65 cap protects the sensor when the USB cable
is not connected.
Specifications
Temperature Range: -40 to 1000°C (-40 to 1832ºF)
Field-of-View:
OS301A-USB: 30:1
OS801A-USB: 5 at 100 mm diameter
Output: 4 to 20 mA (linear with temperature)
Configuration: Via PC port conforming to USB 2.0
Accuracy: ±1% of reading or ±1°C whichever is greater
Repeatability: ±0.5% of reading or ±0.5°C
whichever is greater
Emissivity: 0.1 to 1.0
Response Time t90: 200 mS (90% response)
Spectral Range: 8 to 14 µm
Supply Voltage: 24 Vdc (28 Vdc maximum)
Sensor Voltage: 6 Vdc minimum
Maximum Loop Impedance: 900 Ω @ 24 Vdc
Maximum Span: 1000°C (1832ºF)
Minimum Span: 100°C (212ºF)
Mechanical
Construction: Stainless steel
Dimensions: 61 L x 27.6 mm D (2.4 x 1.1")
Thread Mounting: M20 x 1 mm (0.04") pitch
Weight with Output Cable: 155 g (5.47 oz)
Output Cable Length: 1 m (3.3')
USB Cable Length: 1.8 m (5.9')
Environmental
Environmental Rating: IP65
Ambient Temperature Range: 0 to 70°C (32 to 158ºF)
Relative Humidity: 95% maximum non-condensing
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with sensor head, 1 m (3.3') cable, USB cable, software, and operator’s manual.
* 1 m (3.3’) cable is included as standard on every sensor. Extended cable is added to that length, add suffix to model number.
Ordering Example: (1) OS301A-USB configurable infrared temperature sensor with 30:1 optics, 4 to 20 mA output, USB cable PC software, and water cooled jacket., ¥5,170.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Optics
|
| |
Select
301A for 30 to 1 ratio
801A for 80 to 1 ratio
|
(2)
|
Temprature Range
|
| |
Select
-LT for Low Temp 45 to 300degC
-MT for Medium Temp 250 to 1000 degC
-HT for High Temp 450 to 2000 degC
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
