19mm (3/4") Diameter Miniature Low Cost Non-Contact Infrared Temperature Transmitter -Discontinued
|
| OS136 Series |
|
 |
|
|
Non-Contact Infrared Temperature Transmitter
 |

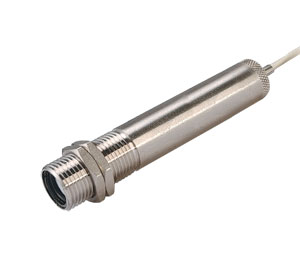

| Click for larger image. |
|
|
|
|
| • |
Two Temperature Ranges Available:
|
| • |
OS136-1: -18 to 202C (0 to 400F)
|
| • |
OS136-2: 149 to 538C (300 to 1000F)
|
| • |
Five Output Available:
MA=4 to 20 mA
V1=0 to 5 Vdc
V2=0 to 10 Vdc
K=Type K Thermocouple
MV=10 mV/Degree Analog Outputs Available
|
| • |
Sensor and Transmitter Combined
|
| • |
Packaged into a 19 mm (3/4") O.D. by 89 mm (3.5") Long Stainless Steel Housing
|
| • |
Optical Field of View: 6 to 1
|
| • |
Fixed Emissivity of 0.95
|
| • |
NEMA-4 Rated Housing
|
| • |
Makes Fast and Accurate Measurements
|
View related products - Thermocouples
|
| |
|
|
|
 |
The OS136 series has been discontinued. Please see the OS136A as a possible alternative or contact our Temperature Engineering department.
OMEGA's new miniature, low-cost,
high performance infrared
sensor/transmitter model OS136
features a 19 mm (3/4") O.D. by
89 mm (3.5") long stainless steel
NEMA-4 housing. This mini
transmitter is ideal for applications
that require measuring temperature
in hard-to-reach, confined or harsh
environment areas. The OS136
comes with a 1.8 m (6') shielded
cable for power and output connections. Models feature
industry standard outputs that
provide easy interfacing directly to
all meters, controllers, dataloggers,
recorders, computer boards and
PLC’s. The fixed emissivity of
0.95 allows for quick and easy
measurements requiring no
adjustment during installation
and use.
|
|
|
|
|
|
† Price are shown in RMB.
Note: * OS136-LS Laser Sighting: One unit suitable for aligning multiple heads. Used during installation only.
Ordering Example: (1) OS100-MB Mounting bracket, ¥285.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Temperature Range
|
| |
Select
1 for -18 to 202°C (0 to 400°F)
2 for 149 to 538°C (300 to 1000°F)
|
(2)
|
Output
|
| |
Select
K for Type K thermocouple
MV-F for 10 mV/°F
MV-C for 10 mV/°C
MA for 4 to 20 mA
V1 for 0 to 5 Vdc
V2 for 0 to 10 Vdc
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
