22mm Emergency Stop Push Buttons

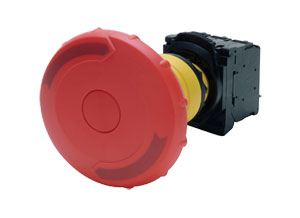

OMPBD7 E-Stop 22mm Push Buttons

OMPBD7 E-Stop 22mm Push Buttons:22mm Emergency Stop Push Buttons
Click for larger image.

¥ 970.00  OMPBD7P-MT64PX01
• Modular design
• Tool-less mounting latch
• 22.5mm mounting hole size
• Plastic 40mm mushroom momentary operators
• Plastic 30mm, 40mm, 60mm mushroom E-Stop operators (twist-to-release)
• NEMA 4/4X/13 environmental ratings
• Heavy-duty current rating (10A continuous)

View related products - Pushbuttons, Switches & Indicator Lights - Pilot Devices

Click to scroll below to order See Specs PDF Related Items View a printer friendly page



Omega's rugged OMPBD7 E-Stops offer maximum flexibility and a wide choice for all applications. This 22 mm line is aesthetically appealing and modularly designed to make assembly and interchangeability easy.

What is Momentary vs Maintained?
When a pushbutton is pressed, it will open or close a circuit. A momentary pushbutton will allow the electrical contact to return to is original position when the pushbutton is released. A maintained pushbutton will keep the contacts in the changed position, it requires some additional action to return to is original position.


Quick and Easy Installation!

What is a Tool-Less Mounting Latch?
Quick, reliable and strong, it's the best pilot device mounting latch available in the industry. Once the E-Stop operator is installed in the panel, the Tool-Less latch pushes onto the back of the operator with a "click". Now you can snap on up to 6 contact blocks, with no tools.

Long Electrical and Mechanical Life

What are the Environmental Ratings?
Front elements, including push buttons, mushroom operators, selector switches and E-stops, are IP 66 protection against submersion, oil and dirt, making them reliable in the toughest industrial environments. OMPBD7P is a plastic operator with a captive black plastic front bezel. Constructed of high-grade thermoplastics the OMPBD7P is the corrosion resistant solution for harsh environments and is rated NEMA Type 4/4X/13 & IP65/66 for use in wash down locations. For super tough applications, the OMPBD7M has a die-cast zinc housing and mounting ring for rugged durability. Both are finished with corrosion resistant chrome plating. The OMPBD7M also features a captive shiny metal bezel for a polished appearance. Metal operators are NEMA Type 4/13 & IP65/66 rated.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Non-Illuminated One Piece E-Stop Push Buttons

Twist-to-Release
 OMPBD7D-MT44X01 2 Weeks   ¥815.00    40mm red, plastic one piece monolithic E-stop, 1 NC contact
 OMPBD7D-MT44X02 2 Weeks   ¥1,050.00    40mm red, plastic one piece monolithic E-stop, 2 NC contacts
 OMPBD7D-MT44X11 8 Weeks   ¥1,050.00    40mm red, plastic one piece monolithic E-stop, 1 NO/NC contacts
 Non-Illuminated E-Stop Push Buttons - Models Include Operator, Tool-less Latch and One Contact Block

Twist-to-Release - add up to 5 additional contact blocks
 OMPBD7P-MT34PX01 4 Weeks   ¥840.00    Plastic E-stop with plastic bezel, 30 mm red twist-to-release, 1 NC contact block
 OMPBD7P-MT34PX10 4 Weeks   ¥840.00    Plastic E-stop with plastic bezel, 30 mm red twist-to-release, 1 NO contact block
 OMPBD7P-MT34PX01S 4 Weeks   ¥1,020.00    Plastic E-stop with plastic bezel, 30 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7P-MT44PX01 4 Weeks   ¥875.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7P-MT44PX10 4 Weeks   ¥875.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NO contact block
 OMPBD7P-MT44PX01S 4 Weeks   ¥1,065.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7P-MT64PX01 4 Weeks   ¥970.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7P-MT64PX10 4 Weeks   ¥965.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NO contact block
 OMPBD7P-MT64PX01S 4 Weeks   ¥1,150.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-MT34PX01 4 Weeks   ¥1,045.00    Plastic E-stop with metal bezel, 30 mm red twist-to-release, 1 NC contact block
 OMPBD7M-MT34PX10 4 Weeks   ¥975.00    Plastic E-stop with metal bezel, 30 mm red twist-to-release, 1 NO contact block
 OMPBD7M-MT34PX01S 4 Weeks   ¥1,075.00    Plastic E-stop with metal bezel, 30 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-MT44PX01 4 Weeks   ¥1,080.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7M-MT44PX10 4 Weeks   ¥1,045.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NO contact block
 OMPBD7M-MT44PX01S 4 Weeks   ¥1,135.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-MT64PX01 4 Weeks   ¥1,035.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7M-MT64PX01S 4 Weeks   ¥1,110.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC GCB contact block
 Non-Illuminated E-Stop Push Buttons - Models Include Operator, Tool-less Latch and One Contact Block

Push-Pull - add up to 5 additional contact blocks
 OMPBD7P-MP44PX01 4 Weeks   ¥875.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7P-MP44PX01S 4 Weeks   ¥1,065.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7P-MP44PX10 4 Weeks   ¥875.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NO contact block
 OMPBD7M-MP44PX01 4 Weeks   ¥950.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7M-MP44PX01S 4 Weeks   ¥1,135.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC GCBcontact block
 OMPBD7M-MP44PX10 4 Weeks   ¥950.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NO contact block
 Illuminated E-Stop Pushbuttons - Models Include Operator, Tool-less Latch and One Contact Block

Twist-to-Release - add up to 4 additional contact blocks. Light modules sold separately below.
 OMPBD7P-LMT44PX01 4 Weeks   ¥1,115.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7P-LMT44PX01S 4 Weeks   ¥1,295.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7P-LMT64PX01 4 Weeks   ¥1,220.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7P-LMT64PX01S 4 Weeks   ¥1,360.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-LMT44PX01 4 Weeks   ¥1,180.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7M-LMT44PX01S 4 Weeks   ¥1,360.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-LMT64PX01 4 Weeks   ¥1,280.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7M-LMT64PX01S 4 Weeks   ¥1,450.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC GCB contact block
 Illuminated E-Stop Pushbuttons - Models Include Operator, Tool-less Latch and One Contact Block

Push-Pull - add up to 4 additional contact blocks. Light modules sold separately below.
 OMPBD7P-LMP34PX01 4 Weeks   ¥1,080.00    Plastic E-stop with plastic bezel, 30 mm red twist-to-release, 1 NC contact block
 OMPBD7P-LMP34PX01S 4 Weeks   ¥1,245.00    Plastic E-stop with plastic bezel, 30 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-LMP34PX01 4 Weeks   ¥1,130.00    Plastic E-stop with metal bezel, 30 mm red twist-to-release, 1 NC contact block
 OMPBD7M-LMP34PX01S 4 Weeks   ¥1,315.00    Plastic E-stop with metal bezel, 30 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7P-LMP44PX01 4 Weeks   ¥1,115.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7P-LMP44PX01S 4 Weeks   ¥1,295.00    Plastic E-stop with plastic bezel, 40 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-LMP44PX01 4 Weeks   ¥1,180.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC contact block
 OMPBD7M-LMP44PX01S 4 Weeks   ¥1,360.00    Plastic E-stop with metal bezel, 40 mm red twist-to-release, 1 NC GCBcontact block
 OMPBD7P-LMP64PX01 4 Weeks   ¥1,200.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7P-LMP64PX01S 4 Weeks   ¥1,375.00    Plastic E-stop with plastic bezel, 60 mm red twist-to-release, 1 NC GCB contact block
 OMPBD7M-LMP64PX01 4 Weeks   ¥1,280.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC contact block
 OMPBD7M-LMP64PX01S 4 Weeks   ¥1,450.00    Plastic E-stop with metal bezel, 60 mm red twist-to-release, 1 NC GCBcontact block
 Integral LED Power Module with Lamp
 OMPBD7-N3R 2 Weeks   ¥805.00    Red power module, integral LED 24 Vac/Vdc
 OMPBD7-N5R 6 Weeks   ¥805.00    Red Power module, integral LED 120 Vac
 OMPBD7-N7R 2 Weeks   ¥805.00    Red Power module, integral LED 240 Vac
 Contact Blocks
 OMPBD7-X01 2 Weeks   ¥265.00    NC contact block
 OMPBD7-X10 2 Weeks   ¥265.00    NO contact block
 OMPBD7-X10E 2 Weeks   ¥280.00    NO early make contact block
 OMPBD7-X01L 6 Weeks   ¥280.00    NC late break contact block
 OMPBD7-X10V 2 Weeks   ¥450.00    NO low voltage contact block
 OMPBD7-X01V 2 Weeks   ¥450.00    NC low voltage contact block
 OMPBD7-X01S 2 Weeks   ¥555.00    GCB, guardian block
 OMPBD7-AHA1 2 Weeks   ¥415.00    30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel
 ''EMERGENCY STOP'' Legends
 OMPBD7-15YE112 2 Weeks   ¥74.00    60mm Round yellow ''EMERGENCY STOP'' self-adheisive inscription ring for 22mm E-Stop
 OMPBD7-16YE112 6 Weeks   ¥185.00    90mm Round yellow ''EMERGENCY STOP'' self-adheisive inscription ring for 22mm E-Stop
 22mm Pushbutton Enclosures
 OMPBD7-1MP 6 Weeks   ¥2,385.00    One hole aluminum, gray, NEMA 4/13 (IP66)
 OMPBD7-2MP 6 Weeks   ¥2,815.00    Two hole aluminum, gray, NEMA 4/13 (IP66)
 OMPBD7-3MP 6 Weeks   ¥3,180.00    Three hole aluminum, gray, NEMA 4/13 (IP66)
 OMPBD7-5MP 6 Weeks   ¥4,290.00    Five hole aluminum, gray, NEMA 4/13 (IP66)
 OMPBD7-1PP 6 Weeks   ¥745.00    One hole plastic, gray, NEMA 4/4X/13 (IP66)
 OMPBD7-1YP 6 Weeks   ¥745.00    One hole plastic, yellow, NEMA 4/4X/13 (IP66)
 OMPBD7-2PP 6 Weeks   ¥1,010.00    Two hole plastic, gray, NEMA 4/4X/13 (IP66)
 OMPBD7-3PP 6 Weeks   ¥1,165.00    Three hole plastic, gray, NEMA 4/4X/13 (IP66)
 OMPBD7-4PP 6 Weeks   ¥1,410.00    Four hole plastic, gray, NEMA 4/4X/13 (IP66)
 OMPBD7-6PP 6 Weeks   ¥1,900.00    Six hole plastic, gray, NEMA 4/4X/13 (IP66)
 OMPBM1-100 6 Weeks   ¥1,000.00    One hole painted steel, gray, NEMA 1 (general purpose)
 OMPBM1-200 6 Weeks   ¥1,190.00    Two hole painted steel, gray, NEMA 1 (general purpose)
 OMPBM1-300 6 Weeks   ¥1,335.00    Three hole painted steel, gray, NEMA 1 (general purpose)
† Price are shown in RMB.

 Note: Comes with instruction sheet.
  Ordering Example: (1) OMPBD7-ALP Plastic mounting latch, ¥123.00,  plus (1) OMPBD7-X10 NO contact block, ¥265.00,  plus (1) OMPBD7P-MT44 40 mm operator, ¥940.00, ¥123.00 + 265.00 + 940.00 = $1,328.00
