Two, Four and Eight Port RS-232/422/485 to USB Adaptors

OMG-USB-SER-2, OMG-USB-SER-4 and OMG-USB-SER-8
Lifetime warranty

Two, Four and Eight Port RS-232/422/485 to USB Adaptors
OMG-USB-SER-2, OMG-USB-SER-4 and OMG-USB-SER-8:Two, Four and Eight Port RS-232/422/485 to USB Adaptors

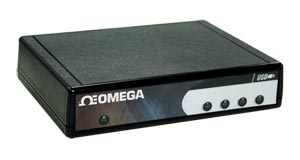

Click for larger image.

¥ 2,745.00  OMG-USB-SER-2
Field Selectable Interface
Power Obtained from USB Cable,
No External Power Required
Automatic RS-485 Data Enable/Disable
Hot Swapping/Auto Configuration
High Speed UART with 128 byte
TX FIFO and 384 byte RX
FIFO Supporting Standard PC Data
Rates up to 921.6K bps
1.8 M (6') High Quality USB Cable Included
Includes Driver and Utility Software

View related products - USB, RS232, RS485 and Ethernet Data Acquisition Systems

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The OMG-USB-SER USB to serial I/O adaptors provide two, four or eight RS-232/422/485 serial ports for USB connectivity to legacy or non-USB compliant devices.

Each port is individually configurable for RS-232, RS-422 or RS-485 communications via internal dip switch settings. OMB-USB-SER adaptors support standard PC data rates up to 921.6K bps. Simply install the included software and connect the OMB-USB-SER adaptor to your USB port.

The device is immediately recognized by the system. At that point, simply connect the adaptor to your target device (i.e. modem, serial printer, scale, bar code/mag stripe reader, etc.). Now your non-USB peripherals can have the same connection simplicity and ease of use as USB aware peripherals. We include our Windows XP/Vista/7 and Linux drivers to simplify installation.

Specifications
Number of Ports:
2, 4 or 8
Interface: Field selectable RS-232/422/485
Max. Data Rate: 921.6K bps
Max. Data Distance: Up to 1219 m (4000')
Operating Temperature: 0 to 50°C (32 to 122 °F)
Storage Temperature: -50 to 105°C (-58 to 221°F)
Humidity Range: 10 to 90% RH non-condensing
Power: USB cable
Connector(s): 2, 4 or 8 DB9P (male)
Dimensions:
OMG-USB-SER-2, -4;
17.78 L x 13.34 W x 3.81 cm H (7.0 x 5.25 x 1.5")
OMG-USB-SER-8;
22.1 L x 15.5 W x 5.1 cm H (8.7 x 6.1 x 2.0")
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 OMG-USB-SER-2 2 Weeks   ¥2,745.00    2 port RS-232/422/485 to USB adaptor
 OMG-USB-SER-4    Consult sales   4 port RS-232/422/485 to USB adaptor
 OMG-USB-SER-8    Consult sales   8 port RS-232/422/485 to USB adaptor
 Accesories
 OMG-CA176 2 Weeks   ¥170.00    DB9F/25M RS-530 cable
 OMG-CA177 8 Weeks   ¥136.00    DB9F/25M 1.8 m (6') cable
 OMG-CA179 8 Weeks   ¥136.00    1.8 m (6') USB A to B cable
 OMG-DR102 8 Weeks   ¥170.00    DIN rail mounting kit
Price are shown in RMB.

 Note: All OMG-USB-SER converters include utility software and a complete user’s manual on CD-ROM, and an OMG-CA179 USB cable.
 Ordering Example: (1) OMG-USB-SER-2 2 port RS-232/422/485 to USB, ¥2,745.00

 Related Links - Manual, Related Products
 Product Manual
   Download  OMG-USB-SER-4 - Four Port RS-232/422/485 to USB Adaptor
   Download  OMG-USB-SER-2 - Two Port RS-232/422/485 to USB Adaptor
