PCI Bus 14-Bit 16/8/4 Channel Analog Output Boards |
| OME-PIO-DA16-DA8-DA4 |
|
 |
|
|
PCI Bus 14-Bit 16/8/4 Channel Analog Output Boards
 |

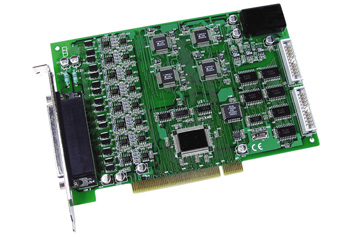

| Click for larger image. |
|
|
|
|
| • |
PCI Bus
|
| • |
16/8/4 Channels, 14-Bits Analog Output
|
| • |
Unipolar or Bipolar Outputs Available
|
| • |
Output Type (Unipolar or Bipolar) and Output Range (0-5 V, ±5 V, 0-10 V, ±10 V) are Software Programmable
|
| • |
4 to 20 mA or 0 to 20 mA Current Sink to Ground for Each Channel
|
| • |
Two Pacer Timer Interrupt Sources
|
| • |
Double-Buffered D/A Latches
|
| • |
Software Calibration
|
| • |
16 Digital Inputs
|
| • |
16 Digital Outputs
|
| • |
One 37-Pin D-Sub Connector for Analog Outputs
|
| • |
Two 20-Pin Flat Cable Connectors for Digital I/O
|
| • |
Connects Directly to OME-DB-16P, OME-DB-16R, OME-DB-24C, OME-DB-24PR and OME-DB-24POR
|
| • |
Automatically Detected by Windows XP/VISTA/7
|
| • |
No base Address or IRQ Jumper to Set
|
View related products - Data Acquisition Plug-in Cards
|
| |
|
|
|
 |
The OME-PIO-DA16U, OME-PIODA8U
and OME-PIO-DA4U are
multi-channel D/A boards for the
PCI bus for IBM or compatible PC.
The OME-PIO-DA16U/8U/4U offer
16/8/4 channels of double-buffered
analog output. The outputs may be
configured in different ranges:
±10 V, ±5 V, 0 to 10 V, 0 to 5 V
voltage output or 4 to 20 mA,
0 to 20 mA current loop sink.
The innovative design improves
several drawbacks of conventional
D/A boards.
For example: 1. No jumper
or trim-pots on the board.
2. The calibration is performed
under software control eliminating
manual trim-pot adjustments.
The calibration data is stored in
EEPROM. 3. Each channel can
be selected as voltage or current
output. 4. High channel count
output can be implemented in
a half size card.
Note: This card needs ±12 V power
supply. This can be found in regular
or Industrial PC’s.
Software Development Kit
All boards are supplied with a
standard software development kit
for Windows XP/VISTA/7 (32-bit).
The software development kit
includes dll files for programming in
C, C++ or other high level
languages and OCX files for Visual
Basic or Active X programming.
LabView drivers are also included.
Specifications
PCI BUS TYPE
3.3 V/5V universal
DIGITAL INPUTS/OUTPUTS
(TTL COMPATIBLE)
Logic High Voltage VIH: 2.4 V (min)
Logic Low Voltage VIL: 0.8 V (max)
Sink Current IOL: 8 mA max
Source Current IOH: 0.4 mA max
ANALOG OUTPUTS
D/A Converter: Quad 14 bits MDAC
Channels: 16/8/4 independent
Resolution: 14-bits
Type: Double-buffered, multiplying
Integral Linearity: 0.006% FSR (typical)
Differential Linearity: 0.006% FSR (typical)
VOLTAGE OUTPUT RANGE
Unipolar: 0 to 5 V or 0 to10 V
Bipolar: ±10 V or ±5 V
Current Drive: ±5 mA
Absolute Accuracy: 0.01% FSR (typical)
Current Output Range: 0 to 20 mA or 4 to 20 mA
Absolute Accuracy: 0.1% FSR (typical)
Excitation Voltage Range: +7 V to +40 V
ENVIRONMENTAL
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Humidity: 0 to 90% RH non-condensing
Dimensions: 115 H x 180 mm W (4.5 x 7.1")
Connector: Analog outputs, 37-pin D-Sub; digital I/O,
two 20-pin headers)
POWER CONSUMPTION
OME-PIO-DA4U: +5 Vdc @ 600 mA
OME-PIO-DA8U: +5 Vdc @ 800 mA
OME-PIO-DA16U: +5 Vdc @ 1400 mA
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each OME-PIO-DA16U/8U/4U analog output board includes complete operator’s manual and software development kit on CD ROM.
|
|
|
|
|
| |
|
