16-Connector BNC Interface Module for OMB-DAQBOARD-2000 Series and OMB-LOGBOOK

OMB-DBK1
1 year warranty CE OmegaCare

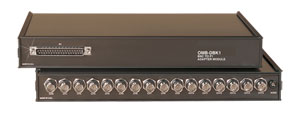

OMB-DBK1:16-Connector BNC Interface Module for OMB-DAQBOARD-2000 Series and OMB-LOGBOOK
Click for larger image.

Provides Access to 16 Analog Inputs Via BNC Connectors
Features Per-Channel 100K Ohm Bias Resistors for Differential Inputs

View related products - Signal Conditioners

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The OMB-DBK1 provides a convenient means of attaching analog signals from BNC cables to the
OMB-LOGBBOOK and OMB-DAQBOARD-2000 Series data acquisition systems. Its 16 BNC connectors accommodate 16 single-ended inputs or 8 differential analog inputs.

Each differential input is equipped with a switchable 100K Ohm bias resistor referenced to analog common. The unit also provides a ground reference via an external ground connection. The OMB-DBK1 features a male DB37 connector that mates with the OMB-LOGBOOK and OMB-DAQBOARD-2000 Series. Signal Termination Since the OMB-DBK1 is a passive universal interface, it also provides a convenient method of connecting analog signals to other I/O devices. The unit’s 16 easy-to-access BNC connectors can be configured as differential or single-ended.

Specifications
Connector:

DB37 male, mates with P1 pinout on the OMB-LOGBOOK
and OMB-DAQBOARD-2000 Series
BNC connectors for signal inputs
Analog Input Connection:
One BNC connector for each of 16 analog input channels
Dimensions:
221 W x 285 L x 35 mm H
(8.5 x 11 x 1.375")
Weight: 1.3 kg (3 lbs)
Cables: Use OMB-CA-37-x with OMB-LOGBOOK and OMB-DAQBOARD-2000 Series
