High Temperature Data Logger with USB Interface |
| OM-EL-USB-1-PRO-A |
|
 |
|
|
High Temperature Data Logger with USB Interface
 |
| Click for larger image. |
|
|
¥
2,205.00

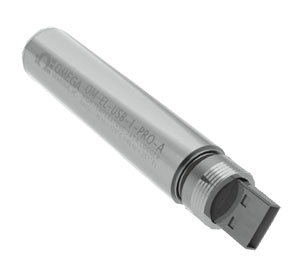

OM-EL-USB-1-PRO-A
|
| • |
-40 to 125°C (-40 to 257°F) Measurement Range
|
| • |
316 SS Case - IP67 (NEMA 4X) Rated
|
| • |
USB Interface for Easy Setup and Data Download
|
| • |
Immediate or Delayed Start Logging
|
| • |
Includes Replaceable High Capacity Lithium Battery and Windows Control Software
|
View related products - Recorders
|
| |
|
|
|
 |
The OM-EL-USB-1-PRO-A data
logger measures and stores up to
32,510 temperature readings
over a -40 to 125°C (-40 to 257°F)
temperature range. The 316 SS
case is corrosion, impact and water
resistant to NEMA 4X (IP67)
standards. The unit is powered by a
2?3 AA lithium battery which allows
logging for up to 3 years.
The user can easily set up the data
logger and download the stored
data by plugging the module straight
into a PCs USB port and running
the easy-to-use Windows software.
Software selectable setup
parameters include logging rate
(1 sec, 10 sec, 1 min, 5 min, 30 min,
1 hr, 6 hr, 12 hr), start-date/time,
and desired temperature units
(°C or °F). Data can then be
graphed, printed and exported to
other applications such as Excel.
The data logger comes complete
with a high capacity long-life
lithium battery.
SPECIFICATIONS
Temperature Measurement
Range: -40 to 125°C (-40 to 257°F)
Resolution: 0.1°C (0.2°F)
Accuracy:
Typical (0 to 40°C):
±0.2°C (±0.4°F)
Max (-40 to 125°C):
±0.5°C (±1.0°F)
Temperature Units: °C or °F selectable in software
Memory: 32,510 readings
Logging Interval: 1 sec, 10 sec, 1 min, 5 min, 30 min, 1 hr, 6 hr, 12 hr
(selectable in software)
Start Date/Time: Selectable in software
Operating Temperature Range: -40 to 125°C (-40 to 257°F)
Software: Windows 2000/XP/VISTA/7 (32-bit and 64-bit)
Power: 2/3 AA 3.6 V lithium battery (included)
Battery Life: 1 yr min at -20°C and 10 sec logging interval,
2 yrs typical at 80°C and 10 second logging interval, 3 yrs max
Weight: 128 g (4.5 oz)
Dimensions: 17.5 x 110 mm (0.69 x 4.33 in)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with Windows software on CD-ROM, USB cable, and 2/3 AA 3.6V lithium battery.
This product page contains items that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) OM-EL-USB-1-PRO-A High temperature data logger with USB interface, ¥2,205.00
|
|
|
|
|
| |
|
