Handheld Programmer and Data Collector for the OM-EL-USB Series Data Loggers |
| OM-EL-DATAPAD |
|
 |
|
|
|
|
|
¥
4,035.00
OM-EL-DATAPAD
|
| • |
Collects and Stores Data From at Least 500 Data Loggers
|
| • |
View Downloaded Data with General Trend and Summary Screens
|
| • |
Full or Quick Set-Up of Compatible OM-EL-USB Series Data Loggers
|
| • |
Touch Screen Interface for Navigation of Menus
|
| • |
2.8" TFT Display
|
| • |
Stored Data can be Transferred to a PC via Micro USB Cable
|
| • |
Use the OM-EL-WIN-USB Windows Software (Included with Each Data Logger) to Graph Data and Export to Excel
|
| • |
Integral Rechargeable Lithium Battery Provides up to 8 Hours
|
View related products - Recorders
|
| |
|
|
|
 |

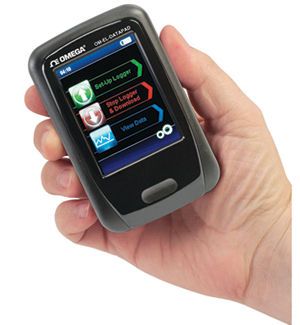

The OM-EL-DATAPAD allows users
of compatible OM-EL-USB Series
data loggers to configure their units
and download data and view
logging results on-the spot rather
than removing the logger from the
environment being measured and
taking it to their PC.
This allows continual logging with
shorter breaks in data collection,
less travel for the user, on-site data
collection in graph, legend and
summary format and the ability for
users to reconfigure loggers in “the
field”. The logger is connected to the
OM-EL-DATAPAD via a standard
USB port at the top of the viewer.
Once connected, the user is guided
through a simple touchscreen menu
with options to set-up logger, stop
logger and download and view data.
On-screen instructions follow
the same structure as the
OM-EL-WIN-USB software for
PC currently provided with
each data logger. Data from
up to 100 loggers can be
viewed on the OM-EL-DATAPAD,
with data from a further 400
units stored on the unit at any
one time.
Data can be transferred to a PC
using a micro USB cable supplied
with the unit. Once uploaded, data
is saved in comma separated
variable (csv) format, making it
suitable for import into spreadsheet
packages such as Microsoft Excel or
graphed on a PC using the
OM-EL-WIN-USB software.
Specifications
Battery: Lithium polymer, rechargeable via micro-USB
connection (included)
LCD: 240 x 320, 2.8" TFT with touch-screen
Memory: Internal flash
Data Recording Capacity: >8.5 million readings typical
Operating Time (On Single Charge): 8 hours typical
(5 hours continuous use)
Operating Temperature: 0 to 50°C (32 to 122°F)
Operation: Single front-panel
push-button used for power-switch.
Single press = ON, press and hold
for 3 sec = OFF
Data Logger Connection:
1x USB Type A socket (top of unit)
for connection of data loggers.
PC Connection: 1x micro-USB
(bottom of unit) for connection
of
unit to PC via 1 m (3.3') USB cable
(included).
Dimensions:
107 H x 68 W x 19 mm D
(4.2 x 2.7 x 0.7")
Weight: 110 g (3.9 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: The OM-EL-DATAPAD is compatible with the following OM-EL-USB Series data loggers:
OM-EL-USB-1, OM-EL-USB-1-LCD, OM-EL-USB-1-PRO-A, OM-EL-USB-2, OM-EL-USB-2-PLUS,
OM-EL-USB-2-LCD, OM-EL-USB-2-LCD-PLUS, OM-EL-USB-TC, OM-EL-USB-TC-LCD
and OM-EL-USB-LITE
Comes complete with 1 m (3.3') USB cable, rechargeable lithium battery, and operator’s manual.
This product page contains items that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) OM-EL-BOOT Protective rubber boot for OM-EL-DATAPAD, ¥314.00, plus (1) OM-EL-DATAPAD Handheld programmer and data collector for the OM-EL-USB Series data loggers, ¥4,035.00, ¥314.00 + 4,035.00 = $4,349.00
|
|
|
|
|
| |
|
