Pressure and Temperature Data Logger – - Part of the NOMAD® Family |
| OM-CP-PRTEMP1000 |
|
 |
|
|
|
|
|
|
|
| • |
Submersible Models to 100 psia
|
| • |
Programmable Start Time
|
| • |
User Calibration through Software
|
| • |
Real Time Operation
|
| • |
Ready to Use Right Out-of-the-Box
|
| • |
Free NIST Certification
|
View related products - Data Loggers
|
| |
|
|
|
 |

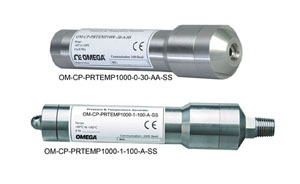

The OM-CP-PRTEMP1000 submersible pressure and
temperature data logger is a battery powered, stand-alone device
used for automatically recording pressure from 0 to 500 psia and
temperatures from -40 to 80°C (higher temperature range
possible for short period of time). This all-in-one compact,
portable, easy to use device will measure and record up to
16,383 temperature and 16,383 pressure measurements.
The OM-CP-PRTEMP1000 is a major leap forward in both size and
performance. Its real time clock ensures that all data is time and
date stamped. The storage medium is non-volatile solid state
memory, providing maximum data security even if the battery
becomes discharged. Its small size allows it to fit almost
anywhere. Data retrieval is simple. Plug it into an empty USB
port the easy to use software does the rest. The software converts
your PC into a real time strip chart recorder. Data can be printed
in graphical or tabular format and can also be exported to a text
or Microsoft Excel file.
Specifications
Temperature Sensor: Thermistor
Temperature Accuracy:
0.5°C
Temperature Resolution:
0.1°C
Temperature Range:
-40 to 80°C (-40 to 176°F)
Pressure Sensor:
Strain gage
Calibrated Accuracy:
2% FSR, 0.25% @ 25°C typical
Pressure Range: 0 to 30 psia, 100 psia, 300 psia
or 500 psia
(psig models also
available). Fully submersible
data loggers are only available in
0-30 psia, 0-30 psig,
0-100 psia and 0-100 psig ranges
Pressure Adapter: 1/4" male
NPT or fully submersible
Pressure/Temperature
Calibration:
Digital calibration
is available through software
Calibration Date:
Automatically recorded
within
device to alert user when
calibration is required
Recording Interval:
2 seconds to 24 hours
selectable through software
Start/Time: Software programmable
immediate start or delay start
up to 6 months in advance
Real Time Recording:
Device may be used with PC
to monitor/ and record data in
real time
Power: 3.6 V lithium battery
included
Battery Life: 1 year typical
Time Accuracy: ±1 minute per
month at 20°C
Data Format: Date and time
stamped °C, °F, K, °R; PSIA (G),
inches, feet, mmHg, bar, Torr, kPa
Weight: 340 g (12 oz)
Computer Interface:
USB (interface cable required); 2400 baud
Software: XP SP3/Vista/7 and 8
(32-bit and 64-bit)
Operating Environment:
-40 to 80°C (-40 to 176°F),
0 to 100% RH non-condensing
Dimensions: 32 mm dia x 163 mm L
(1.25 x 6.4")
Material: Stainless steel
|
|
|
|
|
|
† Price are shown in RMB.
Note: Operator's manual and USB interface are included with the OM-CP-IFC200 Windows software (software sold separately). To order data logger with NIST calibration certificate, add suffix "-cert" to model number and add $100 to price (NIST calibration for temperature only).
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
NPT or Fully Submersible
|
| |
Select
1 for 1/4 NPT Fitting
0 for Fully Submersible Data Loggers
|
(2)
|
Psia or Psig Ranges
|
| |
Select
30-A for 0 to 30 psia
100-A for 0 to 100 psia
300-A for 0 to 300 psia (Not available for Submersible Data Loggers)
500-A for 0 to 500 psia (Not available for Submersible Data Loggers)
1000-A for 0 to 1000 psia (Not available for Submersible Data Loggers)
5000-A for 0 to 5000 psia (Not available for Submersible Data Loggers)
30-G for 0 to 30 psig
100-G for 0 to 100 psig
300-G for 0 to 300 psig(Not available for Submersible Data Loggers)
500-G for 0 to 500 psig(Not available for Submersible Data Loggers)
|
(3)
|
Calibration
|
| |
Select
Nothing(leave field blank) for None
-CERT for NIST Calibration Certificate
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
