Resistance Heating Ribbon Wire
NCRR Series

Heater Ribbon

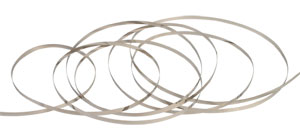

NCRR Series:Resistance Heating Ribbon Wire
Click for larger image.

¥ 2,065.00  NCRR-15-100
• Uniformity of Resistance
• Mechanical Stability
• Fine Surface Finish

View related products - Heater Hook-up Wire, Thermocouple Wire & Connectors

Click to scroll below to order See Specs PDF View a printer friendly page

Nickel-chromium wire (80Ni-20Cr) is proven to deliver outstanding performance over extended periods of time and is the same wire uses in our own electrical heating elements

Resistance Wire - Current vs. Temperature
Current Carrying Capacity of Straight Nickel Chromium Wire, Approximate amperes to heat a straight, oxidized wire in quiet air to given temperature
°F 400 600 800 1000 1200 1400
°C 205 315 427 538 649 760
AWG or
B & S 		Inches
Dia. 		Amperes
15 0.057 7.2 10.0 12.8 16.1 20.0 24.5
16 0.051 6.4 8.7 10.9 13.7 17.0 20.9
17 0.045 5.5 7.5 9.5 11.7 14.5 17.6
18 0.040 4.8 6.5 8.2 10.1 12.2 14.8
19 0.036 4.3 5.8 7.2 8.7 10.6 12.7
20 0.032 3.8 5.1 6.3 7.6 9.1 11.0
21 0.0285 3.3 4.3 5.3 6.5 7.8 9.4
22 0.0253 2.9 3.7 4.5 5.6 6.8 8.2
23 0.0226 2.58 3.3 4.0 4.9 5.9 7.0
24 0.0201 2.21 2.9 3.4 4.2 5.1 6.0
25 0.0179 1.92 2.52 3.0 3.6 4.3 5.2
26 0.0159 1.67 2.14 2.60 3.2 3.8 4.5
27 0.0142 1.44 1.84 2.25 2.73 3.3 3.9
28 0.0126 1.24 1.61 1.95 2.38 2.85 3.4
29 0.0113 1.08 1.41 1.73 2.10 2.51 2.95
30 0.0100 0.92 1.19 1.47 1.78 2.14 2.52
31 0.0089 0.77 1.03 1.28 1.54 1.84 2.17
32 0.0080 0.68 0.90 1.13 1.36 1.62 1.89
33 0.0071 0.59 0.79 0.97 1.17 1.40 1.62
34 0.0063 0.50 0.68 0.83 1.00 1.20 1.41
35 0.0056 0.43 0.57 0.72 0.87 1.03 1.21
36 0.0050 0.38 0.52 0.63 0.77 0.89 1.04
37 0.0045 0.35 0.46 0.57 0.68 0.78 0.90
38 0.0040 0.30 0.41 0.50 0.59 0.68 0.78
39 0.0035 0.27 0.36 0.42 0.49 0.58 0.66
40 0.0031 0.24 0.31 0.36 0.43 0.50 0.57

Current Carrying Capacity of Ribbon
Nickel Chromium Wire, At 1200°F Approximate
Width-Inches
Thickness in Inches 1/64 1/32 1/16 3/32 1/8 3/16
Amps
0.0063 1.56 2.89 5.5 8.2 8.2 16.6
0.0056 1.45 2.69 5.2 7.2 7.2 15.6
0.0050 1.35 2.52 4.9 6.8 6.8 14.7
0.0045 1.26 2.38 4.6 6.4 6.4 14.0
0.0040 1.18 2.23 4.1 6.0 6.0 13.1
0.0035 1.09 2.07 3.8 5.6 5.6 12.3
0.0031 1.01 1.94 3.6 5.3 5.3 11.5
0.0020 — — — — — —
0.0015 4 — — — — —
The current values above are based on actual tests of single strands of oxidized wire mounted in quiet air and operated at 1200°F. The tables are calculated for wire having a resistivity at 1200°F and a total surface watts-density of 28 W per square inch.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 1/64" Width
 NCRR-6-100 6 Weeks   ¥1,060.00    0.0045" Thick
 NCRR-7-100 6 Weeks   ¥1,060.00    0.005" Thick
 NCRR-8-100 6 Weeks   ¥1,550.00    0.0056" Thick
 NCRR-9-100 6 Weeks   ¥1,060.00    0.0063" Thick
 1/32" Width
 NCRR-10-100 6 Weeks   ¥1,615.00    0.002" Thick
 NCRR-13-100 6 Weeks   ¥1,130.00    0.004" Thick
 NCRR-15-100 6 Weeks   ¥2,065.00    0.005" Thick
 NCRR-16-100 6 Weeks   ¥1,915.00    0.0063" Thick
 1/16" Width
 NCRR-17-100 2 Weeks   ¥2,105.00    0.0031" Thick
 NCRR-21-100 6 Weeks   ¥1,260.00    0.005" Thick
 NCRR-22-100 6 Weeks   ¥1,260.00    0.0056" Thick
 NCRR-23-100 2 Weeks   ¥2,195.00    0.0063" Thick
 3/32" Width
 NCRR-25-100 6 Weeks   ¥2,195.00    0.0031" Thick
 NCRR-26-100 6 Weeks   ¥1,260.00    0.0035" Thick
 NCRR-27-100 6 Weeks   ¥1,355.00    0.0045" Thick
 NCRR-28-100 6 Weeks   ¥2,120.00    0.0063" Thick
 1/8" Width
 NCRR-29-100 6 Weeks   ¥2,235.00    0.0031" Thick
 NCRR-31-100 6 Weeks   ¥1,425.00    0.004" Thick
 NCRR-33-100 6 Weeks   ¥1,325.00    0.005" Thick
 NCRR-34-100 6 Weeks   ¥2,305.00    0.0056" Thick
 3/16" Width
 NCRR-35-100 6 Weeks   ¥2,260.00    0.0031" Thick
 NCRR-36-100 6 Weeks   ¥1,805.00    0.0035" Thick
 NCRR-37-100 6 Weeks   ¥1,870.00    0.004" Thick
 NCRR-39-100 2 Weeks   ¥2,370.00    0.005" Thick
† Price are shown in RMB.

 Ordering Example: (1) NCRR-15-100 100' spool of 0.0035, ¥2,065.00
