Connection Heads for Thermocouples and RTDs in Sanitary Applications
NB Sanitary Series

Connection Head | Sanitary Head | Thermocouple Head

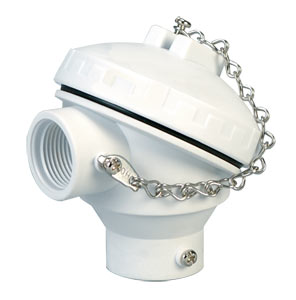

NB Sanitary Series:Connection Heads for Thermocouples and RTDs in Sanitary Applications
Click for larger image.

¥ 400.00  NB9W-0
• Stainless Steel, Aluminum, and Polypropylene
• Available Without Terminal Blocks or with 2 or 4 Terminals

View related products - Thermowells and Head & Well Assemblies

Click to scroll below to order See Specs PDF View a printer friendly page

Model No. Material Tube Entry Wire Entry
NB2 Aluminum ½ NPT ½ NPT
NB9W White
Polypropylene		 ½ NPT ¾ NPT
NB13 316 SS ½ NPT ½ NPT
NB14 316 SS ¼ NPT ¼ NPT
NB15 316 SS ½ NPT ½ NPT
NB16W White
Polypropylene		 ½ NPT ½ NPT
Special connection heads are available for sanitary and other custom applications. Select from Aluminum, White polypropylene or 316 SS, these heads are available with or without a ceramic terminal block. Terminal blocks feature either two or four terminals for fast connections.

Please refer to the specification sheet above for photographs of the individual head types.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Type NB2 Aluminum Head
 NB2-0 2 Weeks   ¥400.00    Aluminum, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
 NB2-2 2 Weeks   ¥430.00    Aluminum, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-49)
 NB2-4 5 Weeks   ¥490.00    Aluminum, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-50)
 Type NB9W White Polypropylene Head
 NB9W-0 5 Weeks   ¥400.00    Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, No internal terminals
 NB9W-2 62 Weeks   ¥445.00    Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, 2 terminals (CH-73)
 NB9W-4 62 Weeks   ¥460.00    Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, 4 terminals (CH-74)
 Type NB13 316 SS Head
 NB13-0 5 Weeks   ¥1,335.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
 NB13-2 62 Weeks   ¥1,410.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
 NB13-4 62 Weeks   ¥1,430.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
 Type NB14 316 SS Head
 NB14-0 5 Weeks   ¥1,025.00    316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, No internal terminals
 NB14-2 5 Weeks   ¥1,070.00    316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, 2 terminals (CH-73)
 NB14-4 5 Weeks   ¥1,100.00    316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, 4 terminals (CH-74)
 Type NB15 316 SS Head
 NB15-0 5 Weeks   ¥1,045.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
 NB15-2 62 Weeks   ¥1,090.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
 NB15-4 62 Weeks   ¥1,120.00    316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
 Type NB16W White Polypropylene Head
 NB16W-0 5 Weeks   ¥520.00    Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
 NB16W-2 62 Weeks   ¥645.00    Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
 NB16W-4 62 Weeks   ¥575.00    Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
 Terminal Blocks for Connection Heads
 CH-49 2 Weeks   ¥120.00    Ceramic block, 2 terminals, for NB2 head
 CH-50 2 Weeks   ¥117.00    Ceramic block, 4 terminals, for NB2 head
 CH-73 62 Weeks   ¥104.00    Ceramic block, 2 terminals, for NB13 head
 CH-74 2 Weeks   ¥132.00    Ceramic block, 4 terminals, for NB13 head
 CH-74/M12 62 Weeks   ¥131.00    Ceramic block, 4 terminals, for NB9W, NB14, NB15 and NB16W heads
† Price are shown in RMB.

 Ordering Example: (1) NB9W-4 white polypropylene protection head with 4-terminal block, ¥460.00
