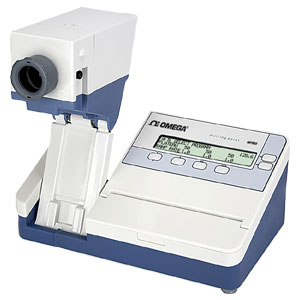

Melting Point Tester |
| MPS30 Series |
|
 |
|
|
|
|
 |
The MPS30 can take 3 samples
simultaneously within the optimized
heating block with a maximum
temperature of 400°C (752ºF).
A plateau facility is included with
variable ramp rate between 0.5 and
10°C (1 to 18°F) in 0.1°C (0.2°F)
increments. The tubes are
illuminated with bright white LED’s
to give the clearest view of the
samples during the melt. The block
has been designed for easy access
for cleaning, the front of the head is
fully removable to allow full access
to the micro furnace.
The MPS30 has a large clear back
lit alphanumeric LCD display,
running the menu system which
clearly guides you through the
melting process with comprehensive
directions. It is possible to record up
to 8 events in memory for each of
the three sample tubes.
The MPS30 features the head up
display, this unique feature displays
a floating image of the block
temperature, visible through the
eyepiece, in front of the tubes. The
head up display eliminates the need
for the user to keep switching their
gaze between the tubes and the
temperature display.
To allow the most comfortable
viewing angle the MPS30 features a
2-stage head adjustment. The head
can then be stored safely back
within the body of the unit for
storage. The design of the unit has
lots of other useful features such as
slots for storing pre-prepared
samples and a storage draw to
hold a container of capillary tubes.
An accessory printer is available
separately to produce a written
record of the melt, and all units are
supplied with a NIST calibration
certificate showing individual serial
numbers for traceability.
Specifications
Number of Samples: 3
Temperature Range: Ambient to 400°C (752°F)
Temperature Resolution: 0.1°C
Temperature Accuracy: ±0.5°C @ 50°C (±0.9°F @ 122°F); ±1°C @ 100°C (±1.8°F @ 212°F); ±2.5°C @ 360°C (±4.5°F @ 680°F)
Display: 40 x 4 LCD
Ramp Rates: 0.5 to 10°C (1 to 18°F) in 0.1°C (0.2°F) increments
Temperature Sensor: Pt1000 platinum resistance
Memory: 8 results per tube
Date/Time Display: Yes
Cool Down Time: 350 to 50°C (662 to 122°F), 12 mins
Heat Up Time: 50 to 350°C (122 to 662°F), 6 mins
Electrical Supply: 120/230V, 50 to 60 Hz
Language Variants: English, German, French, Italian
Temperature Units: °C
Dimensions: 325 W x 200 D x 170 mm H (12.8 x 7.9 x 6.7")
Net Weight: 3.6 kg (127 oz)
IP Rating: 30
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 100 melting point tubes, NIST calibration certificate, UK, European and USA power cords, and operator’s manual.
Ordering Example: (1) MPS30 Melting point apparatus with pack of 100 melting point tubes, sealed at one end, ¥22,335.00
|
|
|
|
|
| |
|
