Omegaflex® Multi-Colored Ribbon Polyurethane Tubing  - Discontinued
MCRPT Series Tubing, 95A Durometer Polyurethane Tubing

Omegaflex® Multi-Colored Ribbon Polyurethane Tubing
MCRPT Series Tubing, 95A Durometer Polyurethane Tubing:Omegaflex® Multi-Colored Ribbon Polyurethane Tubing  - Discontinued
Click for larger image.

• Faster Installation of Multiple Lines
• Eliminate Need for Additional Jacketing
• Color Code Identification
• All the Qualities of Polyurethane Tubing
• Kink and Abrasion Resistant
• Resistant to Chemicals, Water, Fuel, Oil and Fungus
• Outstanding Flexibility and Memory
• Temperature Range -40 to 73°C (-40 to 165°F)
• Vacuum Rating to 28" Hg
Click to scroll below to order See Specs PDF View a printer friendly page

The MCRPT series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

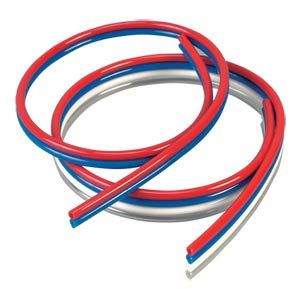

Multi-Color ribbon polyurethane tubing is a bonded ribbon of polyurethane tubing. The bonded tubing offers quicker installation and eliminates the need for additional handling to install spiral wrapping, channels or other bundling materials. The multi-color coded tubing provides quick identification of process lines for tracing and trouble shooting.
TUBESCOLORS
2Red, blue
4Red, blue, white and clear


SPECIFICATIONS
Temperature Range: -40 to 73°C(-40 to 165°F)
Vacuum Rating: To 28" Hg
Working Pressure: 3:1 Safety factor
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 MCRPT-2-18066-100 6 Weeks   ¥1,175.00    2 tubes, coil length 30mm(100ft), 255 working PSI @ 24°C(75°F)
 MCRPT-2-18066-50 6 Weeks   ¥790.00    2 tubes, coil length 15mm (50 ft), 255 working PSI @ 24°C(75°F)
 MCRPT-4-18066-100 6 Weeks   ¥1,600.00    4 tubes, coil length 30mm (100ft), 255 working PSI @ 24°C(75°F)
 MCRPT-4-18066-50 2 Weeks   ¥1,075.00    4 tubes, coil length 15mm (50 ft), 255 working PSI @ 24°C(75°F)
 MCRPT-2-532332-100 6 Weeks   ¥1,525.00    2 tubes, coil length 30mm (100 ft), 210 working PSI @ 24°C(75°F)
 MCRPT-2-532332-50 2 Weeks   ¥1,010.00    2 tubes, coil length 15mm (50 ft), 210 working PSI @ 24°C(75°F)
 MCRPT-4-532332-100 6 Weeks   ¥2,250.00    4 tubes, coil length 30mm (100 ft), 210 working PSI @ 24°C(75°F)
 MCRPT-4-532332-50 6 Weeks   ¥1,330.00    4 tubes, coil length 15mm (50 ft), 210 working PSI @ 24°C(75°F)
 MCRPT-2-14160-100 6 Weeks   ¥2,320.00    2 tubes, coil length 30mm (100 ft), 265 working PSI @ 24°C(75°F)
 MCRPT-2-14160-50 6 Weeks   ¥1,415.00    2 tubes, coil length 15mm (50 ft), 265 working PSI @ 24°C(75°F)
 MCRPT-4-14160-100 6 Weeks   ¥3,835.00    4 tubes, coil length 30mm (100 ft), 175 working PSI @ 24°C(75°F)
 MCRPT-4-14160-50 6 Weeks   ¥2,305.00    4 tubes, coil length 15mm (50 ft), 175 working PSI @ 24°C(75°F)
† Price are shown in RMB.

 Note: Specifications listed are meant only as a guide. Each user must test the tubing under their operating conditions to determine the tubing’s suitability for the particular application.
  Ordering Example: (1) MCRPT-4-18066-100 30 m (100') coil, 4 tubes, 3.2 mm (1.8, ¥1,600.00
