Liquid Level Transmitters Suitable For Levels to Six Feet - Discontinued
LVR20/30 Series
1 year warranty

LVR20/30 Series:Liquid Level Transmitters Suitable For Levels to Six Feet - Discontinued

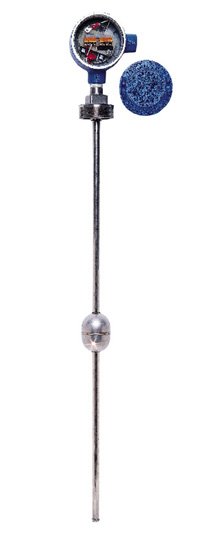

Click for larger image.

• Rugged 316SS Construction
• 4-20 mA or Resistance Output
• Immune to Changes of Density and Dielectric
• 1 /4 " Resolution
Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

Discontinued, replaced by LVR500 Series.

.

The LVR20 and LVR30 Series continuous liquid level sensors operate on a basic voltage divider network principle. As the float rises, a magnet in the float closes a series of reed switches in sequence which varies the tapped-off portion of the voltage divider resistor network. The LVR20 has the basic voltage divider output—the regulated DC voltage input equals the maximum voltage output. The LVR20 has a nominal 1,200 resistance; thus, with a 10 Vdc supply, 8.3 mA of current are required.

The DPF52 or DP24-E panel meters can be used to power and display the resistance from the LVR20; when relays are required, the DP25E-A meter can be used. For maximum accuracy, the readout device for the LVR20 should be zero and span adjusted after wiring is completed to compensate for any effects due to the resistance of the lead wires. The LVR20 can also be made intrinsically safe when used with OMEGA’s intrinsic safety barriers and when properly powered. The LVR30 Series is provided with a signal conditioner to provide a 4-20 mA output when powered by 10-30 Vdc. The LVR30 Series cannot be made intrinsically safe.

All LVR30 units are supplied with a J-box with screw terminal connections. All LVR20 units are supplied without a J-box with 24 inches of bare wire coming out of the top of the unit with a 1?2 MNPT conduit connection. All LVR20 and LVR30 Series units can be wired for increasing output with either increasing or decreasing height of liquid; standard output is increasing output with increasing height. For other lengths, adaptor systems are available. They consist of two parts: the LVR-C coupling (2 x 2 FNPT) and an LVR-A pipe nipple (2 x 2 MNPT) of various lengths to change the insertion depth of the LVR20 or LVR30 sensor. When using the adaptors, a zero offset is introduced into the output signal which must be compensated for in the readout device (for example, the mA signal will not go down to 4 mA, nor will the voltage output go down to zero).

Retaining clip pliers are required to remove the float when using the adaptor system.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Isolated 4 to 20 mA Output and J-box
 LVR31    Consult sales   1 ft 4-20 mA output
 LVR33    Consult sales   3 ft 4-20 mA output
 LVR34    Consult sales   4 ft 4-20 mA output
 LVR35    Consult sales   5 ft 4-20 mA output
 LVR36    Consult sales   6 ft 4-20 mA output
 Voltage Divider (Voltage In = Voltage Out)
 LVR21    Consult sales   1 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 LVR22 2 Weeks   ¥7,830.00    2 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 LVR23    Consult sales   3 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 LVR24    Consult sales   4 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 LVR25    Consult sales   5 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 LVR26    Consult sales   6 ft long indicating length, Voltage Divider, Voltage in = Voltage out
 Accessories
 LVR-A4 7 Weeks   ¥275.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 4" indicating length change
 LVR-A6 7 Weeks   ¥372.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 6" indicating length change
 LVR-A6 7 Weeks   ¥372.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 6" indicating length change
 LVR-A7 7 Weeks   ¥400.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 7" indicating length change
 LVR-A9 7 Weeks   ¥460.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 9" indicating length change
 LVR-A11 7 Weeks   ¥490.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 11" indicating length change
 LVR-A13 7 Weeks   ¥665.00    Pipe Nipple, 304 SS, 150 lb fittings, 2 x 2 MNPT, 13" indicating length change
 LVR-C 7 Weeks   ¥915.00    150 lb 304 SS Coupling, 2 x 2 FNPT
 U24Y175 In Stock   ¥1,510.00    24 Vdc, 175 mA Power Supply
 DPI8 2 Weeks   ¥2,950.00    1/8 DIN Display Panel Meter
† Price are shown in RMB.

 Note: Units come complete with operator's manual.

LVR20 series is supplied without J-Box.


  Ordering Example: (1) DPI8 1/8 DIN display panel meter, ¥2,950.00,  plus (1) LVR22 316 SS level sensor with 2 ft long indicatating length, ¥7,830.00,  plus (1) U24Y175 24 Vdc power supply, ¥1,510.00, ¥2,950.00 + 7,830.00 + 1,510.00 = $12,290.00
