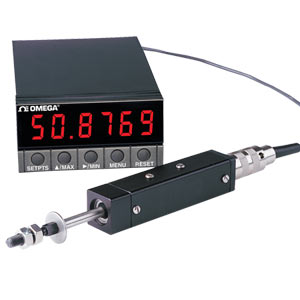

OMEGA's LP802 Series linear potentiometers are used to measure linear position or displacement up to 150 mm (6") in a wide variety of manufacturing and process equipment. These units feature front and rear bearings, anodized extruded aluminum housings, stainless steel shafts and precious metal wipers and contacts for long, trouble-free life in harsh factory environments. Based on a conductive plastic film element, the LP802 provides high resolution, absolute position measurement without external signal conditioners.
SPECIFICATIONS Linearity: ±1% FS Hysteresis: ±0.025 mm (0.001") Repeatability: ±0.012 mm (0.0005") Incremental Sensitivity:0.00127 mm (0.00005") Power Rating: 0.75 watts/stroke inch Temp. Range: -65 to 105°C (-85 to 221°F) Operating Force: 450 g (1 lb) maximum Shaft: 6 mm (0.236") diameter with ¼28 threaded end adaptor Life: 100 million operations minimum at travel rate of 250 mm (10")/second
