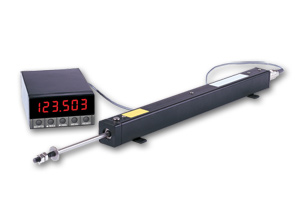

OMEGA's LP801 Series linear potentiometers can be used to measure linear position or displacement up to 1.2 m (48") in a wide variety of manufacturing and process equipment. These units feature front and rear bearings, anodized extruded aluminum housings, stainless steel shafts, and precious metal wipers and contacts for long, trouble-free life in harsh factory environments. Based on a conductive plastic film element, the LP801 provides high resolution, absolute position measurement without external signal conditioners.
SPECIFICATIONS Total Resistance: 5000 Ω ± 20% Linearity: ±1% FS Hysteresis: ±0.025 mm (0.001") Repeatability: ±0.012 mm (0.0005") Incremental Sensitivity: 0.0013 mm (0.00005") Power Rating: 0.75 watts/stroke inch Temp. Range: -65 to 105°C (-85 to 221°F) Operating Force: 450 g (1 lb) max Shaft: 6 mm (0.236") diameter with ¼-28 threaded end adapter Life: 100 million operations up to 300 mm (12") stroke-derated proportionally for longer units (standard rate of travel 50 mm/sec (2"/sec))
