Large Display Meter - Discontinued
LDP63000
2 year warranty CE

Large Display Meter

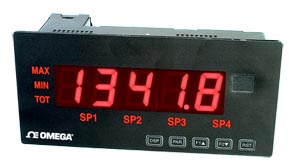

LDP63000:Large Display Meter - Discontinued
Click for larger image.

• Large 38 mm (1.5") LED Display Readable to 70'
• Various Input Types Available
• Alarms, Analog Outputs, and Communication
• Custom Units Label with Backlight
• Programmable User Inputs and Function Keys
• Universal AC/DC Powered
• NEMA 4 (IP65)
• Field Installable Output Cards (Optional)
Click to scroll below to order See Specs PDF Manuals Software View a printer friendly page

The LDP63000 series has been discontinued. Please see the ILD-UTP series as a possible alternative or contact our sales department.

The LDP63000 Series is a versatile display that can increase productivity by offering the plant floor or production area a large visual display of their current status. Whether your measurement needs are for temperature or process information, the LDP63000 can satisfy your requirements. With the use of a units label and backlighting, the display can be tailored to show the actual engineering unit. The LDP63000 display accepts various analog inputs through the use of input modules which allow the unit to adapt to most any application. Additional plug-in option cards can add alarms, analog output, and communication/bus capabilities, making the LDP63000 an “intelligent” panel meter.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Display Meter Only, No Outputs
 LDP63000-T 2 Weeks   ¥6,215.00    Large display meter, temperature inputs, 85 to 250 Vac power
 LDP63000-T-LV    Consult sales   Large display meter, temperature inputs, 11 to 36 Vdc/24 Vac
 LDP63000-E 2 Weeks   ¥6,215.00    Large display meter, process inputs, 85 to 250 Vac po
 LDP63000-E-LV    Consult sales   Large display meter, process inputs, 11 to 36 Vdc/24 Vac
 LDP63000-DC    Consult sales   Large display meter, universal DC Inputs, 85 to 250 Vac power
 LDP63000-DC-LV    Consult sales   Large display meter, universal DC Inputs, 11 to 36 Vdc/24 Vac
 LDP63000-AC    Consult sales   Large display meter, True RMS AC voltage/current inputs, 85 to 250 Vac power
 Optional Plug-in Output Cards (Field Installable)
 Setpoint Alarms (Only 1 Alarm Card Can Be Installed Into Base Meter)
 LDP6-CDS10    Consult sales   Dual setpoint relay output card
 LDP6-CDS20 2 Weeks   ¥765.00    Quad setpoint relay output card
 LDP6-CDS30    Consult sales   Quad setpoint sinking open collector output card
 LDP6-CDS40 2 Weeks   ¥605.00    Quad setpoint sourcing open collector output card
 Analog Output
 LDP6-CDL10 2 Weeks   ¥1,040.00    Analog output card
 Communications (Only 1 Communications Card Can Be Installed Into Base Meter)*
 LDP6-CDC10 2 Weeks   ¥810.00    RS485 serial communications output card with terminal block
 LDP6-CDC1C 2 Weeks   ¥810.00    Extended RS485 serial communications output card with dual RJ11 connector
 LDP6-CDC20 2 Weeks   ¥810.00    RS232 serial communications output card with terminal block
 LDP6-CDC2C 2 Weeks   ¥810.00    Extended RS232 serial communications output card with 9-pin D connector
 LDP6-CDC40 2 Weeks   ¥940.00    MODBUS communications card
 LDP6-CDC4C    Consult sales   Extended MODBUS communications card with dual RJ11 connector
† Price are shown in RMB.

 Note: *Software is free. Download from omega.com.
Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 3 optional plug-in cards, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms, analog output and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.

 Related Links - Manual
 Product Manual
   Download  DP63500-T,DP63600-DC,DP63700-AC,DP63800-E,DP63900-S - Digital Panel Meters
   Download  LDP63000 - Large Display Meter
