4 to 20 mA Output Displacement Transmitters
LD630 Series
1 year warranty CE

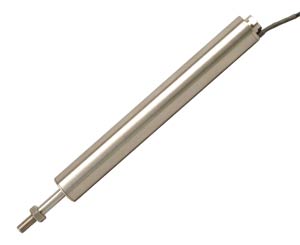

LVDT Displacement Transmitters, 4 to 20 mA Output
LD630 Series:4 to 20 mA Output Displacement Transmitters
Click for larger image.

¥ 6,350.00  LD630-5
• Better Than 0.2% Linearity
• 5 to 300 mm Travel Lengths Available
• 4 to 20 mA or 20 to 4 mA Versions Available
• Rugged Stainless Steel Body Construction
• IP67 Environmental Rating
• Guided Core with Removable Spring for Easy Installation
• Applications:
 Proprotional Actuators
 Robotic Automation
 Linear Servo Actuator
 Industrial Automation Controls
 Motion Control

View related products - Displacement and Proximity Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The LD630 Series current output displacement transmitters have improved IP67-rated sealing, coupled with polymer guides with rigid carriers. These transmitters are accurate and reliable, especially in wet and corrosive conditions. Typical applications include automation actuators, industrial automation controls, and proportional actuators. Output options are either direct-acting 4 to 20 mA or reverse-acting 20 to 4 mA. The direct acting models will have 4 mA output when the guided core is fully out, and the output will increase to 20 mA when fully in.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc
Output Ripple: 0.02% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C (-4 to 185°F)
Operating Temp: 0 to 65°C (32 to 149°F)
Vibration (Sinusoidal Frequency):
   10 to 50 Hz: 1 to 10 g rms linear Amplitude
   50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
   Drop Testing: 1 m (3') onto hard surface
   Topple Testing: 10 times each end onto hard surface
Cable: PFA, 2 m (6') long
Core Material: Nickel-Iron
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 NORMAL ACTION: 4 TO 20 mA
 LD630-5 12 Weeks   ¥6,350.00    Displacement transducer with 4-20 mA output and 5 mm (0.2') range
 LD630-10 12 Weeks   ¥5,520.00    Displacement transducer with 4-20 mA output and 10 mm (0.4') range
 LD630-15 12 Weeks   ¥7,260.00    Displacement transducer with 4-20 mA output and 15mm (0.5') range
 LD630-20 12 Weeks   ¥7,650.00    Displacement transducer with 4-20 mA output and 20 mm (0.8') range
 LD630-30 2 Weeks   ¥8,035.00    Displacement transducer with 4-20 mA output and 30 mm (1.0') range
 LD630-50 5 Weeks   ¥8,470.00    Displacement transducer with 4-20 mA output and 50 mm (2.0') range
 LD630-100 2 Weeks   ¥8,380.00    Displacement transducer with 4-20 mA output and 100 mm (4.0') range
 LD630-150 5 Weeks   ¥9,815.00    Displacement transducer with 4-20 mA output and 150 mm (6.0') range
 LD630-200 12 Weeks   ¥11,545.00    Displacement transducer with 4-20 mA output and 200 mm (7.9') range
 LD630-300 2 Weeks   ¥12,335.00    Displacement transducer with 4-20 mA output and 300 mm (11.8') range
 REVERSE ACTION: 20 TO 4 mA
 LD630-5-R 12 Weeks   ¥6,670.00    Displacement transducer with 20-4 mA output and 5 mm (0.2') range
 LD630-10-R 12 Weeks   ¥7,055.00    Displacement transducer with 20-4 mA output and 10 mm (0.4') range
 LD630-15-R 12 Weeks   ¥7,220.00    Displacement transducer with 20-4 mA output and 15mm (0.5') range
 LD630-20-R 12 Weeks   ¥7,605.00    Displacement transducer with 20-4 mA output and 20 mm (0.8') range
 LD630-30-R 12 Weeks   ¥7,995.00    Displacement transducer with 20-4 mA output and 30 mm (1.0') range
 LD630-50-R 12 Weeks   ¥8,490.00    Displacement transducer with 20-4 mA output and 50 mm (2.0') range
 LD630-100-R 12 Weeks   ¥8,875.00    Displacement transducer with 20-4 mA output and 100 mm (4.0') range
 LD630-150-R 2 Weeks   ¥9,760.00    Displacement transducer with 20-4 mA output and 150 mm (6.0') range
 LD630-200-R 12 Weeks   ¥11,480.00    Displacement transducer with 20-4 mA output and 200 mm (7.9') range
 LD630-300-R 12 Weeks   ¥12,270.00    Displacement transducer with 20-4 mA output and 300 mm (11.8') range
 ACCESSORIES
 LD-TIP In Stock   ¥480.00    Ball Tip Accessory
 LD-UJOINT-KIT 2 Weeks   ¥2,050.00    U-Joint end kit (2 U-joints) to fit LD600 Series
† Price are shown in RMB.

 Note: To order reverse-acting version (20 to 4 mA), add suffix "-R" to model number, no additional charge.
  Ordering Example: (1) LD630-10-R 0 to 10 mm (0 to 0.4'') displacement transmitter with reverse 20 to 4 mA output, ¥7,055.00
