High-Accuracy DC Voltage Output Displacement Transducers
LD620 Series
1 year warranty CE

High-Accuracy Displacement Transducers

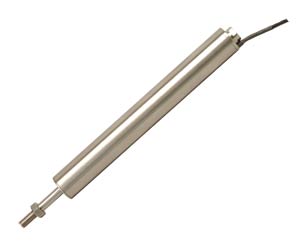

LD620 Series:High-Accuracy DC Voltage Output Displacement Transducers
Click for larger image.

¥ 8,105.00  LD620-2.5
• Better Than 0.2% Linearity
• 5 to 150 mm Total Travel Lengths Available
• Rugged 19 mm Dia. Stainless Steel Body
• Rigid Stainless Steel Carriers
• IP67 Environmental Rating
• Guided Core with Removable Spring for Easy Installation
• Large Bore to Core Clearance
• Applications:
 Proprotional Actuators
 Robotic Automation
 Linear Servo Actuator
 Industrial Automation Controls
 Motion Control

View related products - Displacement and Proximity Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The LD620 DC output displacement tranducers have improved IP67- rated sealing, coupled with new polymer guides with rigid carriers. These transducers are accurate and reliable, especially in wet and corrosive conditions. Output options are either ±5 Vdc (LD620) or 0-10 Vdc (LD621). An unusually large bore-to-core clearance is maintained throughout the range. This makes installation easier and helps prevent misalignment on automation actuators and other industrial automation controls.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc @ 25 mA maximum
Output Ripple: 0.2% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C (-4 to 185°F)
Operating Temp: 0 to 65°C (32 to 149°F)
Sealing: IP67
Vibration (Sinusoidal Frequency):
    10 to 50 Hz: 1 to 10 g rms linear Amplitude
    50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
   Drop Testing: 1 m (3') onto hard surface
   Topple Testing: 10 times each end onto hard surface
Case Material: 300 SS
Cable: PFA, 2 m (6') long
Core Material: Nickel-iron
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 ±5 Vdc Transducers
 LD620-2.5 11 Weeks   ¥8,105.00    ±2.5 mm (±0.1") LVDT with ±5 Vdc output
 LD620-5 11 Weeks   ¥8,640.00    ±5 mm (±0.2") LVDT with ±5 Vdc output
 LD620-7.5 2 Weeks   ¥8,820.00    ±7.5 mm (±0.3") LVDT with ±5 Vdc output
 LD620-10 11 Weeks   ¥9,240.00    ±10 mm (±0.4") LVDT with ±5 Vdc output
 LD620-15 11 Weeks   ¥9,765.00    ±15 mm (±0.6") LVDT with ±5 Vdc output
 LD620-25 2 Weeks   ¥10,290.00    ±25 mm (±1.0") LVDT with ±5 Vdc output
 LD620-50 11 Weeks   ¥10,690.00    ±50 mm (±2.0") LVDT with ±5 Vdc output
 LD620-75 2 Weeks   ¥11,925.00    ±75 mm (±3.0") LVDT with ±5 Vdc output
 LD620-100 11 Weeks   ¥15,740.00    ±100 mm (±3.9") LVDT with ±5 Vdc output
 LD620-150 11 Weeks   ¥8,060.00    ±150 mm (±5.9") LVDT with ±5 Vdc output
 0 to 10 Vdc Transducers
 LD621-5 2 Weeks   ¥10,140.00    0-5 mm (0-0.2") LVDT with 0-10 Vdc output
 LD621-10 11 Weeks   ¥11,315.00    0-10 mm (0-0.4") LVDT with 0-10 Vdc output
 LD621-15 11 Weeks   ¥11,790.00    0-15 mm (0-0.6") LVDT with 0-10 Vdc output
 LD621-20 11 Weeks   ¥11,315.00    0-20 mm (0-0.8") LVDT with 0-10 Vdc output
 LD621-30 2 Weeks   ¥11,725.00    0-30 mm (0-1.2") LVDT with 0-10 Vdc output
 LD621-50 2 Weeks   ¥12,435.00    0-50 mm (0-2.0") LVDT with 0-10 Vdc output
 LD621-100 2 Weeks   ¥14,770.00    0-100 mm (0-4.0") LVDT with 0-10 Vdc output
 LD621-150 5 Weeks   ¥15,980.00    0-150 mm (0-6.0") LVDT with 0-10 Vdc output
 LD621-200 11 Weeks   ¥17,310.00    0-200 mm (0-7.9") LVDT with 0-10 Vdc output
 LD621-300 2 Weeks   ¥19,010.00    0-300 mm (0-11.8") LVDT with 0-10 Vdc output
 Accessories
 LD-TIP In Stock   ¥585.00    Tip Adaptor/Ball Tip
 LD-UJOINT-KIT 11 Weeks   ¥2,490.00    U-Joint retro fit kit
† Price are shown in RMB.

 Note: When used with Omega panel meters an external power supply is required. Model U24Y101, $139 is recommended.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) LD620-2.5 DC displacement sensor with range of ±2.5 mm (±0.1) with output of ±5 Vdc, ¥8,105.00
