The LCMWD is also available in standard configurations, with 0-200 to 0-200,000 lb ranges.
Please see the LCWD for complete details, or contact our Pressure department for more information.
SPECIFICATIONS Excitation: 10 Vdc (15V max) Output: 2 mV/V Accuracy (Linearity and Repeatability Combined): ≤10K lb/50 kN: ±0.5% BFSL >10K lb/50 kN: ±0.75% BFSL Zero Balance: ±4.0% FSO Operating Temp Range: -40 to 127°C (-40 to 260°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: ±0.018% FSO/°C Span: ±0.018% FSO/°C Safe Overload: 120% of capacity Ultimate Overload: 200% of capacity Bridge Resistance: <50k lb/200 kN: 350 Ω min ≥50k lb/200 kN: 700 Ω Full Scale Deflection: 0.025 mm (0.001") typical Construction: Stainless steel Electrical: 1.5 m (5') insulated shielded cable
† Price are shown in RMB.
Note: One set of spherical washers and one set of load buttons supplied with each load cell.

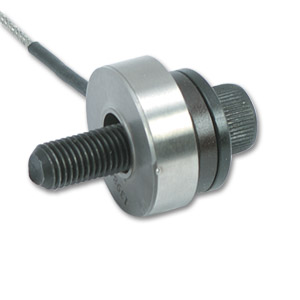

Ordering Example: (1) LCMWD-10KN is a 10 kN capacity load washer supplied with 2 load buttons and a set of spherical washers, ¥6,595.00
