Miniature Load Cell
Ranges 0-100 to 0-200,000 Newtons |
| LCMGD Series |
|
 |
|
|
|
|
 |

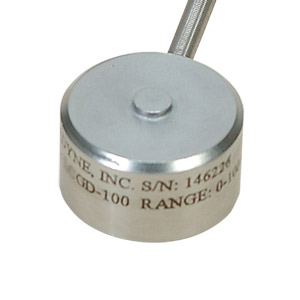

The LCMGD Series miniature low profile load cells are compression load cells with excellent long term stability. An all stainless steel construction assures reliability in severe industrial environments. These units are designed to operate by mounting on a flat surface, and they have a load button machined as an integral part of the basic load cell.
The LCMGD is also available in standard configurations, with ranges from 0-25 to 0-50,000 lb.
Please see the LCGD for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50% 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.20% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.018% of Rdg/°C;
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms minimum
Construction: Stainless Steel
Electrical Connection: 1.5 m (5 ft.) Shielded Cable
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) LCMGD-100N Metric compression load cell with 0-100 Newton range, ¥8,125.00
|
|
|
|
|
| |
|
