Subminiature Tension & Compression Load Cells, Metric,
19 mm & 25 mm Dia. Ranges 0-10 to 0-5000 Newtons |
| LCMFD Series |
|
 |
|
|
|
|
 |

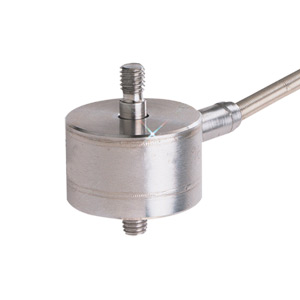

Small in size and capable of providing highly accurate readings, the LCMFD Series load cells are precision subminiature load cells for industrial applications requiring a small size and high accuracy. They are all stainless steel, measure both tension and compression loads and have male thread studs for load attachment. The exclusive internal design provides superior long term stability and minimises the effects of small off-axis loads.
The LCMFD is also available in standard configurations, with 0-2.2 to 0-1000 lb ranges and standard threads.
Please see the LCFD for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation:
≤10 lb/50 N: 5 Vdc
≥25 lb/100 N: 10 Vdc
Output:
2.2 lb/10 N: 1.5 mV/V (nom)
≥5 lb/20 N: 2 mV/V (nom)
Accuracy (Linearity and Hysteresis Combined):
≤100 lb/500 N: ±0.15% FSO
≥250 lb/1000 N: ±0.20% FSO
Repeatability:
≤2.2 lb: ± 0.15% FSO
≥5 lb/10 N: 0.20% FSO
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.009% FSO/°C
Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical Connection: 1.5 m (5') 4-conductor, shielded cable
≤10 lb/50 N: SS overbraided PTFE with temperature compensation board
Protection Class: IP65
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) LCMFD-20N is a miniature tension compression load cell with ±20 Newton range, ¥12,140.00
|
|
|
|
|
| |
|
