Low Range Beam Load Cells

LCM601 Series

Low Range Beam Load Cells

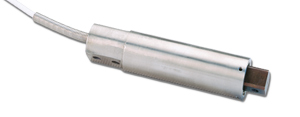

LCM601 Series:Low Range Beam Load Cells
Click for larger image.

5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided
4-Direction Overload Stops
0.25% Interchangeability for Scale Applications
High-Quality All Stainless Steel Construction
Rugged Industrial Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA’s LCM601 Series comprises extremely low-capacity industrial load cells with built-in overload stops in all 4 directions for added durability. They offer high accuracy and rugged construction in a small package and are ideal for small scales and for industrial weighing applications.

The LCM601 is also available in standard configurations, with 0-1 to 0-25 lb ranges and standard threads. Please see the LC601 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 10 Vdc, 15V max
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FSO
Operating Temperature Range: -34 to 82°C (-30 to 180°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.0025% FSO/°F
   Span: ±0.0010% FSO/°F
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.005 to 0.015" typ
Construction: Stainless steel
Electrical Connections: 1.5 m (5') 4-conductor shielded color-coded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 LCM601-1    Consult sales   1 kgf Capacity Load Cell
 LCM601-2 2 Weeks   ¥6,095.00    2 kgf Capacity Load Cell
 LCM601-5    Consult sales   5 kgf Capacity Load Cell
 LCM601-10    Consult sales   10 kgf Capacity Load Cell
Price are shown in RMB.
