Miniature Load Cells - Surface Mount Style |
| LCM204 and LCM214 Series |
|
 |
|
|
|
|
 |
This item is discontinued.
The LCM204 & LCM214 are also available in standard configurations, with 0-25 to 0-10,000 lb ranges and standard threads.
Please see the LC204 for complete details, or contact our Pressure department for more information.

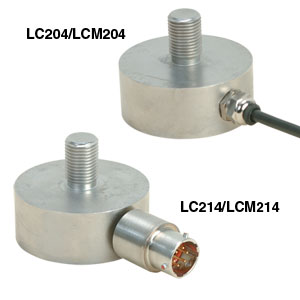

OMEGA’s LCM204 and LCM214 Series
Load Cell is designed to be surface
mounted with the load applied through
the mounting stud. The high linearity
(0.15%) and all stainless steel
construction of the LCM204 make it
ideal for industrial and commercial
weighing and force measuring
applications.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1.0%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Protection Class: IP65
Thermal Effects:
Zero: 0.0045% FSO/°F
Span: 0.009% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 m (10') 4-conductor shielded cable
LC214/LCM214 Mating Connector: PT06F10-6S, sold separately
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LCM204 and LCM204 are supplied with a 5-point NIST traceable calibration.
|
|
|
|
|
| |
|
