Miniature Load Cells
51 mm Diameter |
| LCM203 Series and LCM213 Series |
|
 |
|
|
|
|
 |
This item is being discontinued.
The LCM203 is also available in standard configurations, with 0-25 to 0-10,000 lb ranges and standard threads.
Please see the LC203 for complete details, or contact our Pressure department for more information.

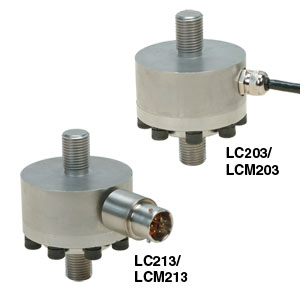

OMEGA’s LCM203 and LCM213 Series are high accuracy, miniature, low profile industrial load cells. It is supplied with a stud at each end for easy in-line mounting. The tough, corrosion resistant steel construction and high accuracy strain gauges make them suitable for most industrial weighing applications.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1.0%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm (0.001 to 0.003")
Protection Class: IP65
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.006% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 m (10') 4-conductor PVC shielded cable
LC213/LCM213 Mating Connector: PT06F10-6S, sold separately
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LCM203 and LCM213 load cells are calibrated in tension and include a 5-Point NIST traceable calibration certificate.
|
|
|
|
|
| |
|
