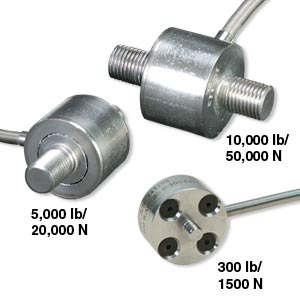

Universal Load Cell, Miniature Metric
25 to 35mm Diameter, 0-100 N to 0-50,000 N |
| LCM202 Series |
|
 |
|
|
|
|
 |
OMEGA’s LCM202 Series Load Cell offers the designer a compact series with ranges from 100 to 50,000 N and accuracy of 0.25%. The all stainless steel construction and rugged design assure long life in industrial and commercial applications.
The LCM202 is also available in standard configurations, with 0-50 to 0-10,000 lb ranges and standard threads.
Please see the LC202 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.25% FSO (linearity, hysteresis, repeatability combined)
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor cable
Protection Class: IP65
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LCM202 series load cells include NIST traceable calibration certificate.
Ordering Example: (1) LCM202-1KN is a metric load cell with a range of 1,000 Newtons, ¥8,120.00
|
|
|
|
|
| |
|
