Environmentally Protected S-Beam Load Cells

LCCD Series

Load Cells

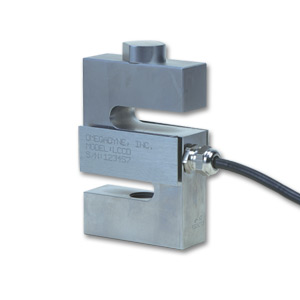

LCCD Series:Environmentally Protected S-Beam Load Cells
Click for larger image.

¥ 6,320.00  LCCD-50
• Environmentally Protected to IP67
• All Stainless Steel for Industrial Environments
• 5 Point Calibration with 59 kOhm Shunt Cal Data
• Tension Calibration Standard
• 0.25% Interchangeability
• Premium Temperature Compensation
• Rod Ends and Load Buttons Available

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page



The LCCD is also available in metric configurations, with 0-10 to 0-5,000 kgf ranges and metric thread. Please see the LCMCD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc maximum)
Output: 3.0 mV/V ±0.25%
Linearity: 0.03% FS
Hysteresis: ±0.05% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: -18 to 66°C (0 to 150°F)
Compensated Temperature: -18 to 66°C (0 to 150°F)
Thermal Effects:
    Zero: 0.0027% FS/°C
    Span: 0.0015% rdg/°C
Maximum Load: Safe, 150%; ultimate, 300%
Bridge Resistance: 350 Ω nominal
Construction: 17-4 PH stainless steel
Cable: Cable: 6 m (20') 4-conductor shielded 24-gage wire (20 AWG for 15K & 20K lb. capacities)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCCD-25 6 Weeks   ¥6,275.00    25 lb/ 11kg capacity
 LCCD-50 2 Weeks   ¥6,320.00    50 lb/23 kg capacity
 LCCD-100 In Stock   ¥6,235.00    100 lb/45 kg capacity
 LCCD-150 6 Weeks   ¥6,585.00    150 lb/68 kg capacity
 LCCD-200 2 Weeks   ¥6,585.00    200 lb/91 kg capacity
 LCCD-250 2 Weeks   ¥6,505.00    250 lb/114 kg capacity
 LCCD-500 6 Weeks   ¥6,585.00    500 lb/227 kg capacity
 LCCD-750 10 Weeks   ¥6,505.00    750 lb/340 kg capacity
 LCCD-1K In Stock   ¥6,585.00    1000 lb/454 kg capacity
 LCCD-2K 6 Weeks   ¥7,045.00    2000 lb/907 kg capacity
 LCCD-3K 2 Weeks   ¥7,390.00    3000 lb/1361 kg capacity
 LCCD-5K 2 Weeks   ¥9,610.00    5000 lb/2269 kg capacity
 LCCD-10K 6 Weeks   ¥10,155.00    10,000 lb/4537 kg capacity
 LCCD-15K 14 Weeks   ¥12,715.00    15,000 lb/6806 kg capacity
 LCCD-20K 14 Weeks   ¥18,360.00    20,000 lb/9074 kg capacity
 Swivel Rod Ends
 REC-014M 2 Weeks   ¥276.00    Swivel Rod End for 25 to 200 lb ranges
 REC-038M 2 Weeks   ¥282.00    Swivel Rod End for 250 lb range
 REC-012M 2 Weeks   ¥560.00    Swivel Rod End for 500 to 3000 lb ranges
 REC-034M 2 Weeks   ¥1,065.00    Swivel Rod End for 5000 to 10,000 lb ranges
 REC-100M 2 Weeks   ¥2,630.00    Swivel Rod End for 15,000 lb range
 REC-114M 6 Weeks   ¥4,385.00    Swivel Rod End for 20,000 lb range
 Load Buttons
 LBC-014 2 Weeks   ¥770.00    Load Button for 25 to 200 lb ranges
 LBC-038 2 Weeks   ¥985.00    Load Button for 250 lb range
 LBC-012 2 Weeks   ¥1,085.00    Load Button for 500 to 3000 lb ranges
 LBC-034 2 Weeks   ¥1,395.00    Load Button for 5000 to 10,000 lb ranges
 LBC-100 10 Weeks   ¥1,470.00    Load Button for 15,000 lb range
 LBC-114 2 Weeks   ¥1,550.00    Load Button for 20,000 lb range
 COMPATIBLE METERS
 DP25B-S 8 Weeks   ¥4,200.00    4-Digit strain meter with excitation
 DP41-S 7 Weeks   ¥8,995.00    6-Digit strain meter with excitation
† Price are shown in RMB.

 Note: DPiS meter suitable for one direction measurement only.
  Ordering Example: (1) LCCD-1K 1000 lb capacity load cell, ¥6,585.00
   Part Number Builder
(1)
L
L
C
C
C
C
D
D
-
-
Qty:
Option Descriptions
(1)
  Select
25 for 25 lb range
50 for 50 lb range
100 for 100 lb range
150 for 150 lb range
200 for 200 lb range
250 for 250 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range
2K for 2000 lb range
3K for 3000 lb range
5K for 5000 lb range
10K for 10000 lb range
15K for 15000 lb range
20K for 20000 lb range
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
