Through-Hole Bolt Load Cells, 3.00 inch O.D.

LC8300

Compact Through-Hole Load Cells, 3.00 inch O.D.

LC8300:Through-Hole Bolt Load Cells, 3.00 inch O.D.

Click for larger image.

^¥ 6,720.00 LC8300-250-2K

•	5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data
•	Low Profile
•	All Stainless Steel Construction
•	Rugged Industrial Design
View related products - Load Cells, Force Sensors and Torque Transducers

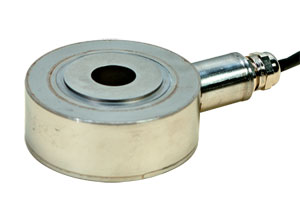

The LC8300 Series Donut Load Cell is an economical solution to applications requiring a through-hole design. With its extremely low profile and compact design, this load cell is ideal for applications such as clamping forces, bolt loading forces and other compressive loads. This series, with its all stainless steel construction and environmental protection, have a proven reliability in tough industrial applications.

SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
LC8300-1.13-1K	10 Weeks	¥6,755.00	Thru hole load cell, 3.0" OD, 1.13" ID 0-1,000 lb capacity	qty.

LC8300-1.13-3K		Consult sales	Thru hole load cell, 3.0" OD, 1.13" ID 0-3,000 lb capacity	qty.

LC8300-1.25-5K	10 Weeks	¥7,130.00	Thru hole load cell, 3.0" OD, 1.25" ID 0-5,000 lb capacity	qty.

LC8300-1.25-20K	12 Weeks	¥9,080.00	Thru hole load cell, 3.0" OD, 1.25" ID 0-20,000 lb capacity	qty.

LC8300-1.00-50K	10 Weeks	¥9,080.00	Thru hole load cell, 3.0" OD, 1.00" ID 0-50,000 lb capacity	qty.

LC8300-1.00-100K	12 Weeks	¥10,360.00	Thru hole load cell, 3.0" OD, 1.00" ID 0-100,000 lb capacity	qty.

† Price are shown in RMB.

Note: All LC8300 load cells include a NIST traceable calibration certificate.
Ordering Example: (1) LC8300-1.25-20K is a 20,000 lb capacity load cell with 3.00" O.D. and 1.25" I.D., ¥9,080.00

Part Number Builder

	(1)		(2)
L L C C 8 8 3 3 0 0 0 0 - -		- -
Qty:

Option Descriptions

(1)

Inside Diameter

Select
250 for 0.250 inch ID
375 for 0.375 inch ID
500 for 0.500 inch ID
625 for 0.625 inch ID
750 for 0.750 inch ID
875 for 0.875 inch ID
938 for 0.938 inch ID
1.00 for 1.00 inch ID
1.13 for 1.13 inch ID
1.25 for 1.25 inch ID
1.38 for 1.38 inch ID
1.50 for 1.50 inch ID

(2)

Load Range

Select
1K for 0-1000 lb range
2K for 0-2000 lb range
3K for 0-3000 lb range
4K for 0-4000 lb range
5K for 0-5000 lb range
7.5K for 0-7500 lb range
10K for 0-10000 lb range
20K for 0-20000 lb range
30K for 0-30000 lb range
40K for 0-40000 lb range
50K for 0-50000 lb range
75K for 0-75000 lb range
100K for 0-100000 lb range

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Related Links - Related Products

Related Products

	DP25B Series:
	1/8 DIN Process Meter & Controller

	DP41-S:
	High Performance Strain Gage Meter, High Resolution 6-Digit Display

	DMD4059 Series:
	Bridge/Strain Gage Signal Conditioner

Keywords:Compact Through-Hole Load Cells, 3.00 inch O.D. Bolt load cell, water level gauge
