Through-Hole Bolt Load Cells
1.00" or 1.25" OD |
| LC8100/LC8125 Series |
|
 |
|
|
|
|
 |

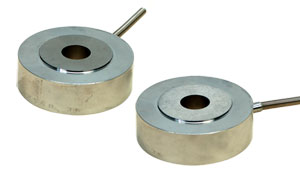

The LC8100 and LC8125 Series Donut Load Cell is an economical
solution to applications requiring a through-hole design. With its
extremely low profile and compact design, this load cell is ideal for
applications such as clamping forces, bolt loading forces and other
compressive loads. This series, with its all stainless steel construction
have demonstrated proven reliability in tough industrial applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Accuracy: ±1.0% linearity, hysteresis and repeatability combined
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.075 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) LC8125-200-500 is a 0-500 lb capacity load cell with 1.25'' O.D. and 0.200'' I.D.,, ¥6,570.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
OD
|
| |
Select
8100 for 1 inch OD
8125 for 1.25 inch OD
|
(2)
|
ID
|
| |
Select
100 for 0.100 inch ID
125 for 0.125 inch ID
188 for 0.188 inch ID
200 for 0.200 inch ID
250 for 0.250 inch ID
312 for 0.312 inch ID
375 for 0.375 inch ID
|
(3)
|
Range
|
| |
Select
5 for 0-5 lb
10 for 0-10 lb
25 for 0-25 lb
50 for 0-50 lb
100 for 0-100 lb
200 for 0-200 lb
250 for 0-250 lb
500 for 0-500 lb
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
