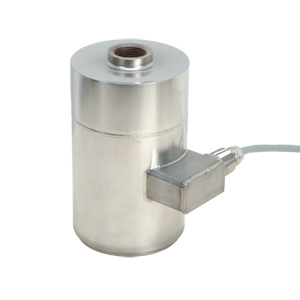

Canister Load Cell, High Capacity Universal Design, Rugged Stainless Steel Case
LC1103

LC1103:Canister Load Cell, High Capacity Universal Design, Rugged Stainless Steel Case
Click for larger image.

• 5-Point Calibration with 59 kOhm Shunt Cal Data Included (Calibrated in Tension)
• 0.25% Interchangeability for Multiple Cell Load Applications
• Dual Bridge Models Available
• High Accuracy
• Environmentally Protected
• See Related Links Below for Cables and Accessories

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This item is discontinued.


SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc max)
Output: 2 mV/V ±0.25% FSO
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Protection Class: IP67
Linearity:
   ≤10 k: ±0.05% FSO
   >10 k: ±0.1% FSO
Hysteresis: ±0.05% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1% FS
Operating Temp Range:
   LC1103: -46 to 107°C (-50 to 225°F)
   LC1113: -46 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.0018% FS/°C
   Span: ±0.0018% rdg/°C
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of rated capacity
Input Resistance: 350 ± 10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.08 to 0.13 mm (0.003 to 0.005") typical
Construction: stainless steel
Electrical: 4.6 m (15') 4-conductor shielded color-coded PVC cable
Protection Class: IP67
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC1103-50    Consult sales   Universal canister load cell with 15 foot cable, 50 lb capacity
 LC1103-100    Consult sales   Universal canister load cell with 15 foot cable, 100 lb capacity
 LC1103-300    Consult sales   Universal canister load cell with 15 foot cable, 300 lb capacity
 LC1103-500    Consult sales   Universal canister load cell with 15 foot cable, 500 lb capacity
 LC1103-1K    Consult sales   Universal canister load cell with 15 foot cable, 1,000 lb capacity
 LC1103-2.5K    Consult sales   Universal canister load cell with 15 foot cable, 2,500 lb capacity
 LC1103-5K    Consult sales   Universal canister load cell with 15 foot cable, 5,000 lb capacity
 LC1103-10K    Consult sales   Universal canister load cell with 15 foot cable, 10,000 lb capacity
 LC1103-20K    Consult sales   Universal canister load cell with 15 foot cable, 20,000 lb capacity
 LC1103-50K    Consult sales   Universal canister load cell with 15 foot cable, 50,000 lb capacity
 LC1103-100K    Consult sales   Universal canister load cell with 15 foot cable, 100,000 lb capacity
 LC1103-200K    Consult sales   Universal canister load cell with 15 foot cable, 200,000 lb capacity
 LC1103-300K    Consult sales   Universal canister load cell with 15 foot cable, 300,000 lb capacity
 LC1103-500K    Consult sales   Universal canister load cell with 15 foot cable, 500,000 lb capacity
 Canister Load Cells with Twist-Lock Connector
 LC1113-50    Consult sales   Universal canister load cell with twist-lock connector, 50 lb capacity
 LC1113-100    Consult sales   Universal canister load cell with twist-lock connector, 100 lb capacity
 LC1113-300    Consult sales   Universal canister load cell with twist-lock connector, 300 lb capacity
 LC1113-500    Consult sales   Universal canister load cell with twist-lock connector, 500 lb capacity
 LC1113-1K    Consult sales   Universal canister load cell with twist-lock connector, 1,000 lb capacity
 LC1113-2.5K    Consult sales   Universal canister load cell with twist-lock connector, 2,500 lb capacity
 LC1113-5K    Consult sales   Universal canister load cell with twist-lock connector, 5,000 lb capacity
 LC1113-10K    Consult sales   Universal canister load cell with twist-lock connector, 10,000 lb capacity
 LC1113-20K    Consult sales   Universal canister load cell with twist-lock connector, 20,000 lb capacity
 LC1113-50K    Consult sales   Universal canister load cell with twist-lock connector, 50,000 lb capacity
 LC1113-100K    Consult sales   Universal canister load cell with twist-lock connector, 100,000 lb capacity
 LC1113-200K    Consult sales   Universal canister load cell with twist-lock connector, 200,000 lb capacity
 LC1113-300K    Consult sales   Universal canister load cell with twist-lock connector, 300,000 lb capacity
 LC1113-500K    Consult sales   Universal canister load cell with twist-lock connector, 500,000 lb capacity
 LOAD BUTTONS
 LBC-038 2 Weeks   ¥825.00    Load Button, 50, 100 and 300 lb models
 LBC-012 2 Weeks   ¥910.00    Load Button, 500, 1000 and 2500 lb models
 LBC-100 10 Weeks   ¥1,235.00    Load Button, 5k and 10k lb models
 LBC-112 2 Weeks   ¥1,135.00    Load Button, 20k and 50k lb models
 LBC-300-8    Consult sales   Load Button, 100k lb models
 ROD ENDS
 REC-038M 2 Weeks   ¥236.00    Rod End, 50, 100 and 300 lb models
 REC-012M 2 Weeks   ¥470.00    Rod End, 500, 1000 and 2500 lb models
 REC-100M 2 Weeks   ¥2,205.00    Rod End, 5000 and 10,000 lb models
 REC-112M 6 Weeks   ¥3,680.00    Rod End, 20k and 50k lb models
 ACCESSORIES
 PT06F10-6S In Stock   ¥326.00    Mating Connectors, LC1113 models
 CA-6PC24-3-015 In Stock   ¥1,315.00    15 foot connector/cable assembly for LC1113 series
† Price are shown in RMB.

 Note: (1) To order models with connector instead of cable specify model number LC1113, no extra charge. mating connector model number PT06F10-6S sold separately $26.50 each. (2) Models >300,000 lb are calibrated at 300,000 lb. Full scale calibration above 300,000 lb within ±1% available: Add suffix “-FS” to the model number and add $1,500 to order price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) PT06F10-6S Mating electrical connector, ¥326.00
   Part Number Builder
(1) (2)
L
L
C
C
-
-
Qty:
Option Descriptions
(1) Cable or Connector Style
  Select
1103 for Cable Style
1113 for Connector Style
(2) Load Range
  Select
50 for 50 lb range
100 for 100 lb range
300 for 300 lb range
500 for 500 lb range
1K for 1000 lb range
2.5K for 2500 lb range
5K for 5000 lb range
10K for 10000 lb range
20K for 20000 lb range
50K for 50000 lb range
100K for 100000 lb range
200K for 200000 lb range
300K for 300000 lb range
500K for 500000 lb range
NOTE for Ranges >= 100000 lb are priced at time of sale
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
