Canister Load Cells - High Output, Tension or Compression
LC1102

Universal Canister Load cells, High Output load cell

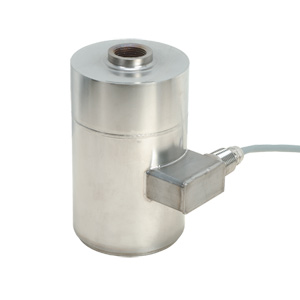

LC1102:Canister Load Cells - High Output, Tension or Compression
Click for larger image.

• 5-Point Calibration with 59 kOhm Shunt Cal Data Included (Calibrated in Tension)
• Dual Bridge Models Available
• High Accuracy
• See Related Links Below for Cables and Accessories

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This item is discontinued.


Canister load cells are used for single and multi-weighing applications. They are suitable for almost all industrial applications (esp. truck, tank, track, hopper scales), utilize proven strain gage technology, and an all stainless steel design hermetically sealed for washdown and wet areas.

SPECIFICATIONS
Output: 3 mV/V ±0.25 % FSO
Excitation: 10 Vdc (15V max)
Accuracy Class: ±0.05% FSO
Linearity: ±0.05% FSO
Hysteresis: ±0.02% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -24 to 79°C (-30 to 175°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.003% FSO/°C
   Span: ±0.014% rdg/°C
Protection Class: IP67
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Full Scale Deflection: 0.08 to 0.13 mm (0.003 to 0.005") typ.
Construction: Stainless steel
Electrical: 4.5 m (15') 4-conductor shielded color-coded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC1102-50    Consult sales   Universal canister load cell with 15 foot cable, 50 lb capacity
 LC1102-100    Consult sales   Universal canister load cell with 15 foot cable, 100 lb capacity
 LC1102-300    Consult sales   Universal canister load cell with 15 foot cable, 300 lb capacity
 LC1102-500    Consult sales   Universal canister load cell with 15 foot cable, 500 lb capacity
 LC1102-1K    Consult sales   Universal canister load cell with 15 foot cable, 1,000 lb capacity
 LC1102-2K    Consult sales   Universal canister load cell with 15 foot cable, 2,000 lb capacity
 LC1102-5K    Consult sales   Universal canister load cell with 15 foot cable, 5,000 lb capacity
 LC1102-10K    Consult sales   Universal canister load cell with 15 foot cable, 10,000 lb capacity
 LC1102-15K    Consult sales   Universal canister load cell with 15 foot cable, 15,000 lb capacity
 LC1102-20K    Consult sales   Universal canister load cell with 15 foot cable, 20,000 lb capacity
 LC1102-25K    Consult sales   Universal canister load cell with 15 foot cable, 25,000 lb capacity
 LC1102-50K    Consult sales   Universal canister load cell with 15 foot cable, 50,000 lb capacity
 LC1102-100K    Consult sales   Universal canister load cell with 15 foot cable, 100,000 lb capacity
 Canister Load Cells with Twist-Lock Connector
 LC1112-50    Consult sales   Universal canister load cell with twist-lock connector, 50 lb capacity
 LC1112-100    Consult sales   Universal canister load cell with twist-lock connector, 100 lb capacity
 LC1112-300    Consult sales   Universal canister load cell with twist-lock connector, 300 lb capacity
 LC1112-500    Consult sales   Universal canister load cell with twist-lock connector, 500 lb capacity
 LC1112-1K    Consult sales   Universal canister load cell with twist-lock connector, 1,000 lb capacity
 LC1112-2K    Consult sales   Universal canister load cell with twist-lock connector, 2,000 lb capacity
 LC1112-5K    Consult sales   Universal canister load cell with twist-lock connector, 5,000 lb capacity
 LC1112-10K    Consult sales   Universal canister load cell with twist-lock connector, 10,000 lb capacity
 LC1112-15K    Consult sales   Universal canister load cell with twist-lock connector, 15,000 lb capacity
 LC1112-20K    Consult sales   Universal canister load cell with twist-lock connector, 20,000 lb capacity
 LC1112-25K    Consult sales   Universal canister load cell with twist-lock connector, 25,000 lb capacity
 LC1112-50K    Consult sales   Universal canister load cell with twist-lock connector, 50,000 lb capacity
 LC1112-100K    Consult sales   Universal canister load cell with twist-lock connector, 100,000 lb capacity
 LOAD BUTTONS
 LBC-038 2 Weeks   ¥825.00    Load Button, 50, 100 and 300 lb models
 LBC-012 2 Weeks   ¥910.00    Load Button, 500, 1000 and 2000 lb models
 LBC-100 10 Weeks   ¥1,235.00    Load Button, 5K, 10k and 15k lb models
 LBC-112 2 Weeks   ¥1,135.00    Load Button, 20k and 25k lb models
 LBC-200-12 18 Weeks   ¥1,945.00    Load Button, 50k lb models
 LBC-300-8    Consult sales   Load Button, 100k lb models
 ROD ENDS
 REC-038M 2 Weeks   ¥236.00    Rod End, 50, 100 and 300 lb models
 REC-012M 2 Weeks   ¥470.00    Rod End, 500, 1000 and 2000 lb models
 REC-100M 2 Weeks   ¥2,205.00    Rod End, 5000, 10,000 and 15,000 lb models
 REC-112M 6 Weeks   ¥3,680.00    Rod End, 20k and 25k lb models
 ACCESSORIES
 PT06F10-6S In Stock   ¥326.00    Mating Connectors, LC1112 models
 CA-6PC24-3-015 In Stock   ¥1,315.00    15 foot connector/cable assembly for LC1112 series
† Price are shown in RMB.

 Ordering Example: (1) PT06F10-6S Mating connector, ¥326.00
   Part Number Builder
(1) (2)
L
L
C
C
-
-
Qty:
Option Descriptions
(1) Cable or Connector Style
  Select
1102 for Cable Style
1112 for Connector Style
(2) Load Range
  Select
50 for 50 lb range
100 for 100 lb range
300 for 300 lb range
500 for 500 lb range
1K for 1000 lb range
2K for 2000 lb range
5K for 5000 lb range
10K for 10000 lb range
15K for 15000 lb range
20K for 20000 lb range
25K for 25000 lb range
50K for 50000 lb range
100K for 100000 lb range
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
