Aluminum "S" Beam Load Cells

LC105 and LC115 Series

Aluminum 'S' Beam Load Cells

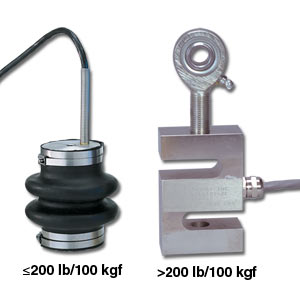

Click for larger image.

•	5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Included
•	Aluminum for Light Weight and Durability
•	Calibrated in Tension
•	IP65 Level Protection
•	LC105 Cable Style or LC115 Connector Style
View related products - Load Cells, Force Sensors and Torque Transducers

This item is discontinued.

The LC105 & LC115 are also available in metric configurations, with ranges from 0-10 to 0-500 kgf and metric threads. Please see the LCM105 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±.0075 mV/V
Linearity: ±0.03% FSO
Hysteresis: ±0.05% FSO
                   ±0.02% FSO
Repeatability: ±0.01% FSO
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.002% FSO/°C
   Span: 0.002% rdg/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 ± 5 Ohms
Full Scale Deflection: 0.25 to 0.50 mm (0.010 to 0.020")
Construction: Aluminum
Electrical (4-conductor shielded cable):
   <250 kg: 9 m (30 ft) 24 AWG
   >100 kg: 9 m (30 ft) 20 AWG
LC115/LCM115 Mating Connector: PT06F10-6S, sold separately

Compatible Meters: DP41-S and DP25B-S

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
LC105-25		Consult sales	+/- 25 lb capacity 'S' Beam Load Cell	qty.

LC105-50		Consult sales	+/- 50 lb capacity 'S' Beam Load Cell	qty.

LC105-100		Consult sales	+/- 100 lb capacity 'S' Beam Load Cell	qty.

LC105-200		Consult sales	+/- 200 lb capacity 'S' Beam Load Cell	qty.

LC105-250		Consult sales	+/- 250 lb capacity 'S' Beam Load Cell	qty.

LC105-500		Consult sales	+/- 500 lb capacity 'S' Beam Load Cell	qty.

LC105-1K		Consult sales	1,000 lb capacity 'S' Beam Load Cell	qty.


Connector Style Models

LC115-200		Consult sales	200 lb capacity 'S' Beam Load Cell, Connector Style	qty.

LC115-250		Consult sales	250 lb capacity 'S' Beam Load Cell, Connector Style	qty.

LC115-500		Consult sales	500 lb capacity 'S' Beam Load Cell, Connector Style	qty.

LC115-1K		Consult sales	1,000 lb capacity 'S' Beam Load Cell, Connector Style	qty.


ACCESSORIES

PT06F10-6S		¥326.00	Mating Connector for LC115 Series	qty.

LBC-012	2 Weeks	¥910.00	Load Button for 250 to 1000 lb ranges	qty.

REC-012M	2 Weeks	¥470.00	Swivel Rod Ends for 250 to 1000 lb ranges	qty.


COMPATIBLE METERS

DP25B-S	8 Weeks	¥3,525.00	4-Digit strain meter with excitation	qty.

DP41-S	2 Weeks	¥7,555.00	6-Digit strain meter with excitation	qty.

† Price are shown in RMB.

Note: For Metric Ranges Consult Pressure Engineering for Availability
Model LC115 available for ranges >=250 lb.
Ordering Example: (2) REC-012M Matching Rod End for LC105-1K, ¥470.00 ea.

Part Number Builder

	(1)		(2)
L L C C		- -
Qty:

Option Descriptions

(1)

Cable or Connector Style

Select
105 for Cable Style
115 for Connector Style (ranges >= 250 lb)

(2)

Select
25 for 25 lb range
50 for 50 lb range
75 for 75 lb range
100 for 100 lb range
200 for 200 lb range
250 for 250 lb range
300 for 300 lb range
440 for 440 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Related Links - Related Products

Related Products

	DP25B Series:
	1/8 DIN Process Meter & Controller

	DP41:
	1/8 DIN High Performance Temperature, Process and Strain Meter

	SBJ2:
	Summing Junction Boxes NEMA-4X Enclosure

Keywords:'S' Beam Load Cell Tension load cell
