S-Beam Load Cell - Stainless Steel Construction, High Accuracy, Economical Price

LC101 and LC111 Series

S-Beam Load Cells
LC101 and LC111 Series:S-Beam Load Cell - Stainless Steel Construction, High Accuracy, Economical Price

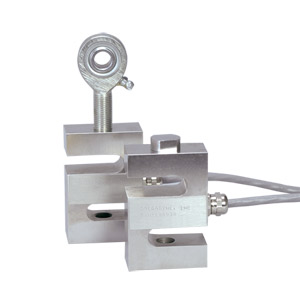

Click for larger image.

¥ 5,585.00  LC101-25
• 5-Point NIST Traceable Calibration with
59K Shunt Data Included
• All Stainless Steel for Harsh Industrial Applications
• 0.25% Interchangeable for Multiple Load Cell Applications
• Calibrated in Tension
• Rod Ends and Load Buttons Available
• See Related Link Below for Ready Made Cable Assemblies

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

S-Beam load cells that receive tension or compression output readings. Applications include tank weighing, hoppers, suspended loads and truck scales. S-Beam load cells provide superior performance in an compact, versatile package. Install using rod ends or load buttons for best performance.

The LC101 & LC111 are also available in metric configurations, with ranges from 0-10 to 0-10,000 kgf and metric threads. Please see the LCM101 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±0.0075 mV/V
Linearity: ±0.03% FSO (0.1% 40 K)
Hysteresis: ±0.05% FSO (0.1% 40 K)
Repeatability: ±0.01% FSO (0.05% 40 K)
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.002% FSO/°C
   Span: 0.002% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.25 to 0.51 mm (0.010 to 0.020")
Construction: 17-4 PH stainless steel
Electrical (LC101/LCM101): 4-Conductor Shielded Cable
   <100 kgf/250 lb: 9 m (30') 24 AWG
   250 to 1000 kgf/250 to 2000 lb: 9 m (30') 20 AWG
   ≥1500 kgf/3000 lb: 4.5 m (15') 20 AWG
Mating Connector (LC111/LCM111):
   ≤100 kgf/200 lb: PT06F8-4S, sold separately
   ≥250 kgf/250 lb: PT06F10-6S, sold separately
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC101 - Cable Connection Models
 LC101-25 20 Weeks   ¥5,585.00    25 lb S type load cell
 LC101-50 In Stock   ¥5,580.00    50 lb S type load cell
 LC101-100 In Stock   ¥5,580.00    100 lb S type load cell
 LC101-200 19 Weeks   ¥5,885.00    200 lb S type load cell
 LC101-250 18 Weeks   ¥5,580.00    250 lb S type load cell
 LC101-500 19 Weeks   ¥5,380.00    500 lb S type load cell
 LC101-1K 2 Weeks   ¥5,590.00    1000 lb S type load cell
 LC101-1.5K 18 Weeks   ¥5,510.00    1500 lb S type load cell
 LC101-2K 18 Weeks   ¥5,280.00    2000 lb S type load cell
 LC101-2K-BR5k 18 Weeks   ¥6,335.00    2000 lb S type load cell with 5000 ohm bridge
 LC101-2.5K 2 Weeks   ¥5,510.00    2500 lb S type load cell
 LC101-3K 11 Weeks   ¥6,525.00    3000 lb S type load cell
 LC101-5K 19 Weeks   ¥7,675.00    5000 lb S type load cell
 LC101-10K 20 Weeks   ¥14,320.00    10000 lb S type load cell
 LC101-20K 19 Weeks   ¥12,040.00    20000 lb S type load cell
 LC101-25K 18 Weeks   ¥14,360.00    25000 lb S type load cell
 LC101-30K 18 Weeks   ¥14,545.00    30000 lb S type load cell
 LC101-40K 7 Weeks   ¥15,305.00    40000 lb S type load cell
 LC111 - Twist Lock Connector Models
 LC111-25 18 Weeks   ¥5,415.00    25 lb S type load cell
 LC111-50 18 Weeks   ¥5,510.00    50 lb S type load cell
 LC111-100 18 Weeks   ¥5,510.00    100 lb S type load cell
 LC111-200 18 Weeks   ¥5,510.00    200 lb S type load cell
 LC111-250 18 Weeks   ¥6,265.00    250 lb S type load cell
 LC111-500 18 Weeks   ¥5,845.00    500 lb S type load cell
 LC111-1K 18 Weeks   ¥5,510.00    1000 lb S type load cell
 LC111-2K 18 Weeks   ¥5,445.00    2000 lb S type load cell
 LC111-3K 2 Weeks   ¥6,365.00    3000 lb S type load cell
 LC111-5K 18 Weeks   ¥7,860.00    5000 lb S type load cell
 LC111-10K 18 Weeks   ¥14,140.00    10000 lb S type load cell
 LC111-20K 18 Weeks   ¥11,890.00    20000 lb S type load cell
 LC111-25K 18 Weeks   ¥14,770.00    25000 lb S type load cell
 LC111-30K 18 Weeks   ¥14,120.00    30000 lb S type load cell
 LC111-40K 18 Weeks   ¥14,930.00    40000 lb S type load cell
 ACCESSORIES
 PT06F8-4S 2 Weeks   ¥347.00    Mating Connector for LC111 ranges ≤200 lb (not included)
 PT06F10-6S In Stock   ¥389.00    Mating Connector for LC111 ranges ≥250 lb (not included)
 CA-4PC24-2A-015 2 Weeks   ¥1,460.00    15 foot 4 wire cable assembly for LC111 ranges ≤200 lb (not included)
 CA-4PC24-2-015 2 Weeks   ¥1,465.00    15 foot 4 wire cable assembly for LC111 ranges ≥250 lb (not included)
 Swivel Rod Ends
 REC-014M 2 Weeks   ¥276.00    Swivel Rod End for 25 to 200 lb ranges
 REC-012M 2 Weeks   ¥560.00    Swivel Rod End for 250 to 2000 lb ranges
 REC-058M 2 Weeks   ¥530.00    Swivel Rod End for 3000 to 5000 lb ranges
 REC-100M 2 Weeks   ¥2,630.00    Swivel Rod End for 10,000 to 20,000 lb ranges
 REC-100M-1 2 Weeks   ¥5,115.00    High Capacity Swivel Rod End for 25,000 to 30,000 lb ranges
 REC-114M 6 Weeks   ¥4,385.00    High Capacity Swivel Rod End for 40,000 lb range
 Load Buttons
 LBC-012 2 Weeks   ¥1,085.00    Load Button for 250 to 2000 lb ranges
 LBC-058 2 Weeks   ¥1,230.00    Load Button for 3000 to 5000 lb ranges
 LBC-100 10 Weeks   ¥1,470.00    Load Button for 10,000 to 30,000 lb ranges
 LBC-114 2 Weeks   ¥1,550.00    Load Button for 40,000 lb range
 COMPATIBLE METERS
 DP25B-S 8 Weeks   ¥4,200.00    4-Digit strain meter with excitation
 DP41-S 7 Weeks   ¥8,995.00    6-Digit strain meter with excitation
† Price are shown in RMB.

 Note: LC111 mating connector sold separately.
  Ordering Example: (1) LC101-25 25 lb capacity ''S'' type load cell with with 30 foot cable, ¥5,585.00
   Part Number Builder
(1) (2)
L
L
C
C
-
-
Qty:
Option Descriptions
(1) Cable or Connector Style
  Select
101 for Cable Style
111 for Connector Style
(2)
  Select
20 for 20 lb range
25 for 25 lb range
50 for 50 lb range
75 for 75 lb range
100 for 100 lb range
150 for 150 lb range
200 for 200 lb range
250 for 250 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range
1.2K for 1200 lb range
1.5K for 1500 lb range
2K for 2000 lb range
2.5K for 2500 lb range
3K for 3000 lb range
4K for 4000 lb range
5K for 5000 lb range
10K for 10000 lb range
15K for 15000 lb range
20K for 20000 lb range
25K for 25000 lb range
30K for 30000 lb range
40K for 40000 lb range
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.


 Related Links - Related Products
 Related Products
CA Series CA Series:
Cable Assemblies for Pressure Transducers and Load Cells
DP25B Series DP25B Series:
1/8 DIN Process Meter & Controller
DP41 DP41:
1/8 DIN High Performance Temperature, Process and Strain Meter
SBJ2 SBJ2:
Summing Junction Boxes NEMA-4X Enclosure
