Hermetically Sealed Tip Insulated Thermocouples
HSTC Series

Hermetically Sealed Tip Insulated Thermocouples

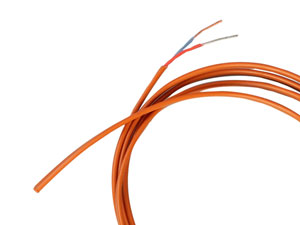

HSTC Series:Hermetically Sealed Tip Insulated Thermocouples
Click for larger image.

¥ 400.00  HSTC-TT-K-24S-36
• Available in 40", 80", and 120" Lengths
• Hermetically Sealed
• Highly Resilient to Chemicals and Oils
• Electrically-Insulated Junction
• Easily Cleaned and Sterilized
• Small Size Provides a Fast Response
• Rated to 250°C (482°F)
• 24 AWG Stranded Thermocouple Grade Wire Standard
20 AWG Stranded Construction is Available for Longer Lengths
• Response Time = 4.5 Seconds Max in Water Flowing at 3 Feet per Second (63%)

View related products - Thermocouples

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

These PFA insulated thermocouple wire sensors are hermetically sealed at the sensor tip to provide continuous PFA protection over the measurement junction. This hermetic seal design provides a small, flexible, and electrically isolated thermocouple, suited to a variety of applications.

When using longer lengths, #20AWG stranded wire construction is available to reduce sensor resistance.

For a hermetically sealed RTD sensor, see the HSRTD

Popular models shown in the "To Order" table. Please review product specs for all available versions and use the "Part Number Builder" below to order.



View the Thermocouple Accuracy and Color Code charts
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Type J Thermocouple
 HSTC-TT-J-24S-36    Consult sales   Type J Hermetically sealed tip thermocouple, 1 m (40"), stripped ends
 HSTC-TT-J-24S-36-SMPW-CC    Consult sales   Type J Hermetically sealed thermocouple, 1 m (40"), SMPW male connector with cable clamp
 HSTC-TT-J-24S-120    Consult sales   Type J Hermetically sealed tip thermocouple, 3 m (120"), striped ends
 HSTC-TT-J-20S-120    Consult sales   Type J Hermetically sealed thermocouple, 3 m (120"), 20 AWG wire, stripped leads
 HSTC-TT-J-20S-120-SMPW-CC    Consult sales   Type J Hermetically sealed thermocouple, 3 m (120"), 20 AWG wire, SMPW male connector with cable clamp
 Type K Thermocouple
 HSTC-TT-K-24S-36 In Stock   ¥400.00    Type K Hermetically sealed tip thermocouple, 1 m (40"), stripped ends
 HSTC-TT-K-24S-36-SMPW-CC 8 Weeks   ¥485.00    Type K Hermetically sealed thermocouple, 1 m (40"), SMPW male connector with cable clamp
 HSTC-TT-K-24S-72-SMPW-CC 8 Weeks   ¥570.00    Type K Hermetically sealed thermocouple, 2 m (80"), SMPW male connector with cable clamp
 HSTC-TT-K-24S-120-SMPW-CC In Stock   ¥570.00    Type K Hermetically sealed thermocouple, 3 m (120"), SMPW male connector with cable clamp
 HSTC-TT-K-20S-120    Consult sales   Type K Hermetically sealed thermocouple, 3 m (120"), stripped leads
 HSTC-TT-K-20S-120-SMPW-CC    Consult sales   Type K Hermetically sealed thermocouple, 3 m (120"), SMPW male connector with cable clamp
 Type T Thermocouple
 HSTC-TT-T-24S-36-SMPW-CC 2 Weeks   ¥540.00    Type T Hermetically sealed thermocouple, 1 m (40"), SMPW male connector with cable clamp
 HSTC-TT-T-24S-72-SMPW-CC    Consult sales   Type T Hermetically sealed thermocouple, 1 m (40"), SMPW male connector with cable clamp
 HSTC-TT-T-24S-120-SMPW-CC 8 Weeks   ¥660.00    Type T Hermetically sealed thermocouple, 3 m (120"), SMPW male connector with cable clamp
 HSTC-TT-T-24S-36 2 Weeks   ¥400.00    Type T Hermetically sealed tip thermocouple, 1 m (40"), stripped ends
 HSTC-TT-T-20S-120 8 Weeks   ¥550.00    Type T Hermetically sealed thermocouple, 3 m (120"), stripped leads
 HSTC-TT-T-20S-120-SMPW-CC    Consult sales   Type T Hermetically sealed thermocouple, 3 m (120"), SMPW male connector with cable clamp
 Type E Thermocouple
 HSTC-TT-E-24S-36 8 Weeks   ¥425.00    Type E Hermetically sealed tip thermocouple, 1 m (40"), stripped ends
 HSTC-TT-E-20S-120    Consult sales   Type E Hermetically sealed thermocouple, 3 m (120"), stripped leads
 HSTC-TT-E-24S-36-SMPW-CC 2 Weeks   ¥560.00    Type E Hermetically sealed thermocouple, 1 m (40"), SMPW male connector with cable clamp
 HSTC-TT-E-20S-120-SMPW-CC    Consult sales   Type E Hermetically sealed thermocouple, 3 m (120"), SMPW male connector with cable clamp
 Accessories
 SMPW-J-F In Stock   ¥36.00    Female Type J Miniature Connector
 SMPW-J-M In Stock   ¥30.50    Male Type J Miniature Connector
 SMPW-K-F In Stock   ¥36.00    Female Type K Miniature Connector
 SMPW-K-M In Stock   ¥30.50    Male Type K Miniature Connector
 SMPW-T-F In Stock   ¥36.00    Female Type T Miniature Connector
 SMPW-T-M In Stock   ¥30.50    Male Type T Miniature Connector
 SMPW-E-F In Stock   ¥36.00    Female Type E Miniature Connector
 SMPW-E-M In Stock   ¥30.50    Male Type E Miniature Connector
† Price are shown in RMB.

 Note:
  • Custom variations available - Consult Sales - Add $1 per additional 300 mm (12") of TT wire.
  • To order this thermocouple with a full sized connector, replace “SMPW” in the model number with “OSTW”, no additional charge.
  • For 20AWG Stranded wire construction, change "-24S-" to "-20S-" and add $3 to the price.

    • (OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

      Ordering Example: (1) HSTC-TT-K-24S-72-SMPW-CC PFA insulated thermocouple, Type K calibration (CHROMEGA™-ALOMEGA™), 24 stranded AWG, 2 m (80, ¥570.00,  plus (1) SMPW-K-F Female Connector, ¥36.00, ¥570.00 + 36.00 = $606.00
       Part Number Builder
    (1) (2) (3) (4)
    H
    H
    S
    S
    T
    T
    C
    C
    -
    -
    T
    T
    T
    T
    -
    -
    Qty:
    Option Descriptions
    (1) Thermocouple Type
      Select
    J for Type J Iron/Constantan
    K for Type K Chromega/Alomega
    T for Type T Copper/Constantan
    E for Type E Chromega/Constantan
    (2) Wire
      Select
    -24S for 24 AWG stranded thermocouple
    -20S for 20 AWG stranded thermocouple
    (3) Thermocouple Length
      Select
    -36 for 40 inches
    -72 for 80 inches
    -120 for 120 inches
    (4) Termination Options
      Select
    Nothing(leave field blank) for Stripped Leads
    -SMPW-CC for Miniature Male Connector with Molded Cable Clamp
     NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
