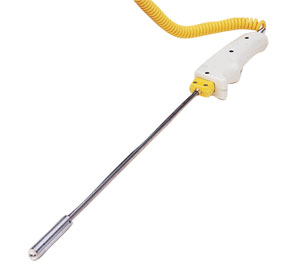

High Temperature Surface Thermocouple Probe with Handle and Retractable Cable
HPS-HT Series

High Temperature Surface Thermocouple Probe
HPS-HT Series:High Temperature Surface Thermocouple Probe with Handle and Retractable Cable
Click for larger image.

¥ 1,845.00  HPS-HT-K-12-SMP-M
• Type K, E, or J Thermocouple Calibrations
• Type K Measures Temperature up to 1100°C (2000°F)
• SMP Miniature Male Connector Termination on End of Retractile Cord
• 12 In. Probe is Standard. Other Lengths Available.

View related products - Thermocouples

Click to scroll below to order See Specs PDF View a printer friendly page

OMEGA’s High Temperature Surface Probe features a thermocouple alloy spring-loaded sensing element to ensure consistent readings. The twelve-inch probe comes with an SMP Male Connector termination and a 0.3 mm (1 ft.) retractable sensor cable (stretches to 1.5 m (5 ft.). Available in thermocouple types J, K, or E, the HPS-HT probe can measure temperatures up to 1100°C (2000°F), type K only.

SPECIFICATIONS
Maximum Short-Term Temperature Rating:
    Type K: 1100°C (2000°F)
    Type E: 870°C (1600°F)
    Type J: 760°C (1400°F)
Maximum Handle Temperature: 70°C (160°F)
Length: 300 mm (12") (custom lengths available)
Cable: 300 mm (1') retractable, stretches to 1.5 m (5'); miniature thermocouple (SMPW) connector
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HPS-HT-K-12-SMP-M 2 Weeks   ¥1,845.00    High temperature surface probe, type K
 HPS-HT-E-12-SMP-M 5 Weeks   ¥1,810.00    High temperature surface probe, type E
 HPS-HT-J-12-SMP-M 5 Weeks   ¥1,845.00    High temperature surface probe, type J
† Price are shown in RMB.

 Ordering Example: (1) HPS-HT-E-12-SMP-M high temperature surface probe, type E, 12 inches long with an SMP miniature connector, ¥1,810.00
